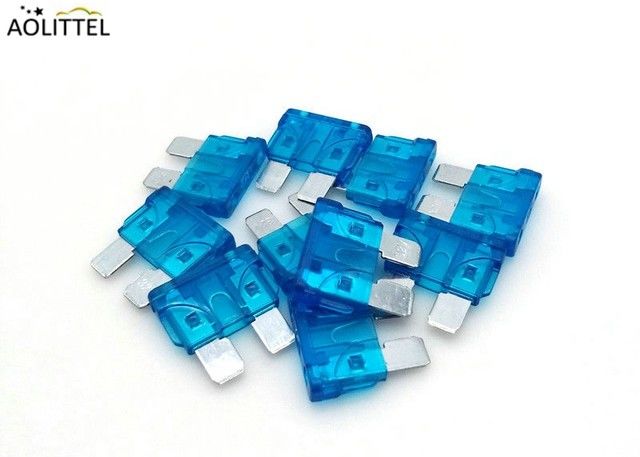

Plug In Type ATC Car 10 Amp Low Profile Mini Fuse

Plug In Type ATC Car 10 Amp Low Profile Mini Fuse

Product Details:

Place of Origin: Dongguan,Guangdong,China
Brand Name: Ao littel
Certification: ROHS,UL
Model Number: ATC

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: USD 0.018 to 0.03 Per Piece
Packaging Details: Bulk, 1000pcs/Bag, 1.3kg/bag
Delivery Time: 7-10 Workdays
Payment Terms: Western Union, T/T, MoneyGram,Paypal
Get Best Price Contact Now

Detail Information

Product Type: Medium Size ATC Auto Blade Fuse Terminal: Zinc Alloy (Default)or Aluminum Alloy
Housing: PC Rated Voltage: 32/48/58V Dc
Size: Medium (Standard) Rated Current: 1 To 40 Amps
Fuse Type: Automotive Length: 19.05mm
Width: 5.08mm Height: 12.19mm
Fuse Speed: F IR: 1kA
High Light:

ATC 10 Amp Low Profile Mini Fuse

,

12.19mm Low Profile Mini Fuse

,

19.05mm 10 amp mini car fuse

Product Description

Plug In Type ATC Car 10 Amp Low Profile Mini Fuse



Automotive Plug-in Type Plastic Housing 10A Red Medium Size Auto Blade Fuse With Zinc Or Aluminum Alloy





Description



Invented  by Littelfuse for the automotive industry, the ATC fuse has become the original equipment circuit protection standard for foreign and domestic automobiles and trucks.

______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________


The standard ao littel medium blade fuses are the most stable and cost effective auto electrical solution to circuit protection on vehicles for the last 40 years. The reliability and price of the auto blade fuse ensure they will be around for sevaral years to come. Automotive spade style blade fuses used to replace a blown fuse and create single circuit load protection or a bank of protective in-line fuses.

Fast-acting ATC blade fuses for automotive and low-voltage control circuits.








Ao littel Blade Fuse Family Member
NO. Size Series Votalge
1 Mini ATM 32V/48V/58V
2 Medium ATC/ATO 32V/48V/58V
3 Maxi APX/APS 32V/48V/58V


Features and benefits

• Industry standard color coding for quick identification of amp rating
• Tin-plated zinc terminals for corrosion resistance and enhanced conductivity
• UL Recognized for use in low voltage control circuits
• Wide -40°C to +100°C operating temperature range meets the needs of extreme environments
• Lead free, halogen free and RoHS complaint
• Test points on specific part/package numbers may speed up circuit troubleshooting

• Readily identifiable and easily replaced

• Construction-Plastic housing with zinc fuse element and terminals.




Typical Applications


 - Automotive
- Low voltage control circuits





Dimension                                 (Unit :mm, Tolerance±0.4mm)



Plug In Type ATC Car 10 Amp Low Profile Mini Fuse 1





Specification



Interrupting Rating

1000A @ 32/48/58 VDC

Voltage Rating

32/48/58 VDC

Operating Temperature Range

-40˚C to +125˚C

Terminals

Zinc alloy(default) or Aluminum alloy

Housing Materials

PC

Housing flammability rating,UL94

Agency

Meets SAE J2077

ISO 8820

UL 248 Special Purpose Fuses





Environmental



• Operating temperature range -40°C to 125°C, 95% RH non-condensing.

• Storage temperature range -5°C to 35°C or lower, 85% RH non-condensing.





Time-Current Characteristics



% of Rating Opening Time
MINI MAX
110 4H /
135 0.75S 10min
200 0.15S 5S
350 0.080S 0.250S
600 0.030S 0.100S



Electrical Characteristics



Part Number Current Rating Voltage Rating (VDC) Typ. Voltage Drop Cold Resistance I2t Housing Color
ATC-001 1A 32/48/58 176mV 60.88mΩ 9.7A²s Black
ATC-002 2A 32/48/58 171 mV 55.60mΩ 2.8A²s Tan
ATC-003 3A 32/48/58 153 mV 33.75mΩ 9.4A²s Purple

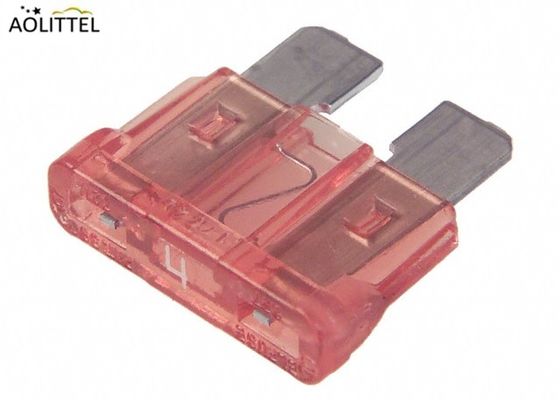

ATC-004 4A 32/48/58 121 mV 23.48mΩ 17A²s Pink
ATC-005 5A 32/48/58 129 mV 17.75mΩ 25A²s Orange

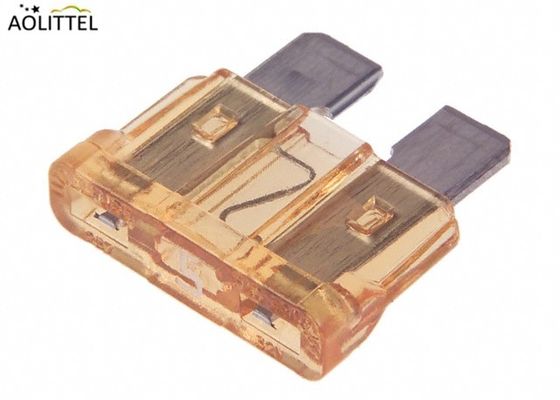

ATC-07.5 7.5A 32/48/58 135 mV 10.85mΩ 68A²s Tan

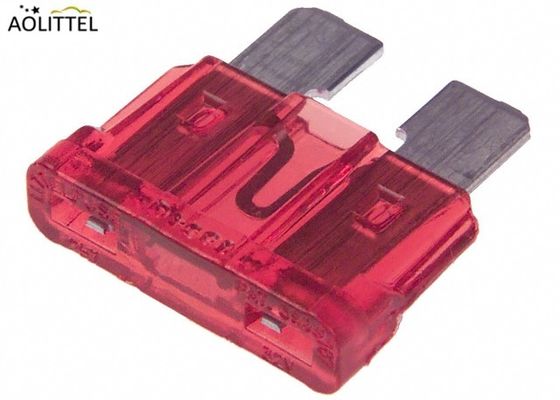

ATC-010 10A 32/48/58 108mV 7.42mΩ 93A²s Red
ATC-015 15A 32/48/58 98mV 4.58mΩ 270A²s Blue
ATC-020 20A 32/48/58 96mV 3.21mΩ 380A²s Yellow
ATC-025 25A 32/48/58 86mV 2.36mΩ 625A²s Natural
ATC-030 30A 32/48/58 87mV 1.85mΩ 1130A²s Green
ATC-035 35A 32/48/58 85mV 1.5mΩ 1430A²s Purplish red
ATC-040 40A 32/48/58 85mV 1.35mΩ 1750A²s

Purple/Orange

  Note: The cold resistance is the reference value with an error of ± 6%





Temperature Rerating Curve



Plug In Type ATC Car 10 Amp Low Profile Mini Fuse 2





Time-Current Characteristic Curves



Plug In Type ATC Car 10 Amp Low Profile Mini Fuse 3





How to identify ao littel auto blade fuses ?



Since 1981,Ao littel Blade-type automotive fuses have been an industry standard . We have a look at the different types and how to identify the one you need.



Modern blade fuses have replaced older glass-tube fuses on vehicles and machinery. Blade fuses come in three size: low profile mini, mini, regular and maxi. Larger types have higher Amp ratings.



Maybe you found it's hard to find a new vehicle or farm machine that still uses glass-tube electrical fuses, although there are still many older working machines equipped with them; and some other electrical gadgets still use them. New vehicles and farm machines now almost exclusively use blade style, also known as plug-in, fuses.



Many people are used to looking for the Amp rating stamped into the nickel-plated ends of glass-tube fuses. On blade fuses, the Amp rating is shown on the top of the plastic body. Depending on the manufacturer, that rating may be embossed into the plastic or only printed on. And if it’s just printed, the number can wear off over time, which can leave you wondering what rating a blown blade fuse had when you need to replace it.



Fortunately, blade fuses are also colour coded. So even if the Amp rating number is disappeared, you can still determine the fuse rating by its standardized body colour (see below).



Plug In Type ATC Car 10 Amp Low Profile Mini Fuse 4





They are three common blade fuse sizes: the small minis (ATM), mid-sized regular (ATC/ATO) and the large maxis (APX). Also a low profile version of the mini, the APS, which uses the same universal Amp colour coding system.

The regular-sized ATC fuse is more common than the ATO. The ATC has a fuse element that is closed (hence the “C” in the code) inside the plastic housing, sealing it from the environment to prevent corrosion from developing. The ATO fuse is open on the bottom, exposing the fuse element between the blades. ATC fuses are the best choice for use on machinery where they could be exposed to the weather. The high probability of corrosion build up could eventually interfere with current flow on an ATO type exposed to moisture.Plug In Type ATC Car 10 Amp Low Profile Mini Fuse 5
