Product Details:

Certification: UL,VDE
Model Number: SNT

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: Negotiable

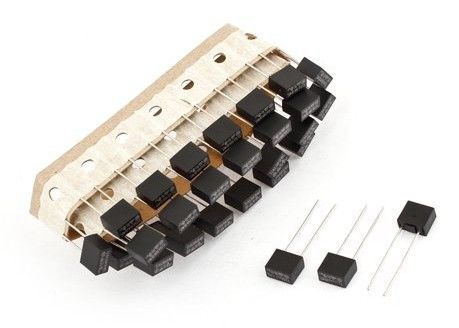

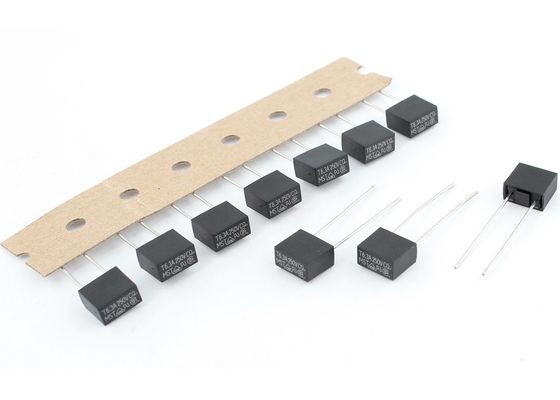

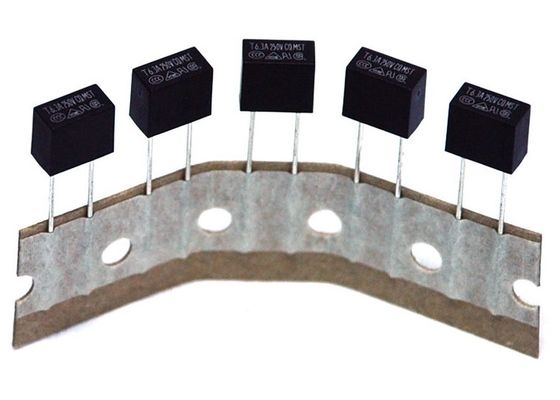

Packaging Details: Tape or Bulk
Delivery Time: 10 Workdays
Payment Terms: T/T, Western Union
Supply Ability: 10KKPCS Per Month
Get Best Price Contact Now

Detail Information

Product Name: Micro Fuse Voltage: 125V,250V,300V,350V
Current: 100mA-6.3A Speed: Time-Lag
Color: Black Dimension: 8.4x7.2x4.0mm
High Light:

micro mini fuse

,

mini cartridge fuse

Product Description

Red Phosphorus Free​ Square Pastic Slow blow Micro Fuse 100mA-6.3A 8.4x7.2x4.0mm With Voltage Rating 125V 250V 300V 350V



Red Phosphorus Free​ Square Pastic Slow blow Micro Fuse 100mA-6.3A 8.4x7.2x4.0mm With Voltage Rating 125V 250V 300V 350V





Features


Reduced PCB space requirements
Direct solderable or plug-in versions
Internationally approved
Low internal resistance
Shock safe casing
Vibration resistant
Halogen free
Lead-free and RoHS compliant
Red Phosphorus Free





Applications


Battery ChargersCons
Consumer Electronics
Power supplies
Industrial Controllers
Chargers







Ordering Information



H=350V,G=300V,A=250V,B=125V

Catalog Ampere Voltage Max Voltage Melting Integral
No. Rating Rating Drop (A2.S)
SNT0100H/G/A/B 100mA 350V/300V/250V 350 0.06
SNT0125H/G/A/B 125mA 350V/300V/250V 300 0.08
SNT0160H/G/A/B 160mA 350V/300V/250V 280 0.10
SNT0200H/G/A/B 200mA 350V/300V/250V 260 0.20
SNT0250H/G/A/B 250mA 350V/300V250V 240 0.40
SNT0315H/G/A/B 315mA 350V/300V/250V 220 0.49
SNT0400H/G/A/B 400mA 350V/300V/250V 200 0.58
SNT0500H/G/A/B 500mA 350V/300V/250V 190 0.65
SNT0630H/G/A/B 630mA 350V/300V/250V 180 0.80
SNT0800H/G/A/B 800mA 350V/300V/250V 160 2.80
SNT1100H/G/A/B 1A 350V/300V/250V 140 5.20
SNT1125H/G/A/B 1.25A 350V/300V/250V 130 7.2
SNT1160H/G/A/B 1.6A 350V/300V/250V 120 10
SNT1200H/G/A/B 2A 350V/300V250V 100 15
SNT1250H/G/A/B 2.5A 350V/300V250V 100 34
SNT1315H/G/A/B 3.15A 350V/300V250V 100 51
SNT1400H/G/A/B 4A 350V/300V250V 100 80
SNT1500H/G/A/B 5A 350V/300V250V 100 110
SNT1630H/G/A/B 6.3V 350V/300V250V 100 170





Dimension (mm)



Red Phosphorus Free​ Square Pastic Slow blow Micro Fuse 100mA-6.3A 8.4x7.2x4.0mm With Voltage Rating 125V 250V 300V 350V 0





Electrical Characteristics



% of Ampere Rating Opening Time
210% 2 min Max
275% 400ms~10s
400% 150ms ~ 3 s
1000% 20ms ~150ms





Certificates



UL: 500mA to 5A and 250V
VDE: 500mA to 5A and 250V
CQC: 500mA to 4A and 250V
SEMKO: 500mA to 5A and 250V
PSE: 1 to 5A and 250V
KTL: 500mA to 4A and 250V





Time-Current Curve



Red Phosphorus Free​ Square Pastic Slow blow Micro Fuse 100mA-6.3A 8.4x7.2x4.0mm With Voltage Rating 125V 250V 300V 350V 1





Temperature Re-rating Curve



Red Phosphorus Free​ Square Pastic Slow blow Micro Fuse 100mA-6.3A 8.4x7.2x4.0mm With Voltage Rating 125V 250V 300V 350V 2

Note:

1. Rerating depicted in this curve is in addition to the standard derating of 25% for continuous operation.





Recommended Process Parameters



Wave Parameter Lead-Free Recommendation

Preheat:

(Depends on Flux Activation Temperature)

(Typical Industry Recommendation)
Temperature Minimum: 100°C
Temperature Maximum: 150°C
Preheat Time: 60-180 seconds
Solder Pot Temperature: 260°C Maximum
Solder Dwell Time: 2-5 seconds



Recommended Hand-Solder Parameters: Solder Iron Temperature: 350°C +/- 5°C Heating Time: 5 seconds max. Note: These devices are not recommended for IR or Convection Reflow process.
