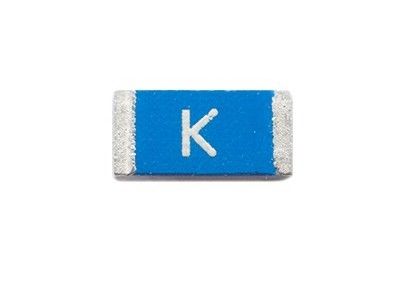

1A 125V 3216 Metric Fast Blow Thin Film SMD Chip Fuse
Product Details:
| Certification: | UL |
| Model Number: | 12B1100B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 10 Wrokdays |
| Delivery Time: | 10 Workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 6KKPCS/Month |
|
Detail Information |
|||
| Type: | Chip Fuse | Rated Current: | 1A |
|---|---|---|---|
| Voltage Rating: | 125V | Speed: | Fast Blow |
| Standard: | UL248-1 UL248-14 | Interrupting Rating: | 50 Amperes At 125V AC/DC |
| Highlight: | 1A SMD chip fuse,125V SMD chip fuse,1A thin film fuse |
||
Product Description
1206 Thin Film Surface Mount Fast Blow Chip Fuse 12B1100B 1A 125V 3216 Metric With 50 Amp Interrupting Rating
Description

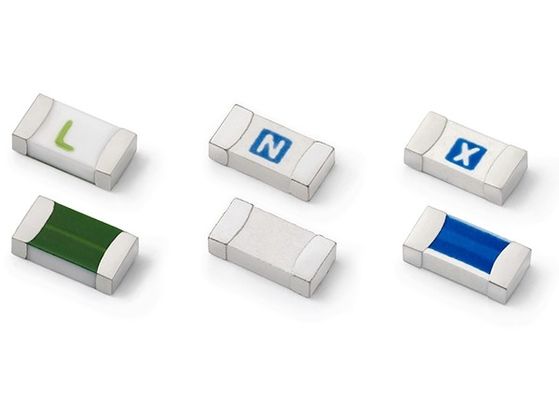

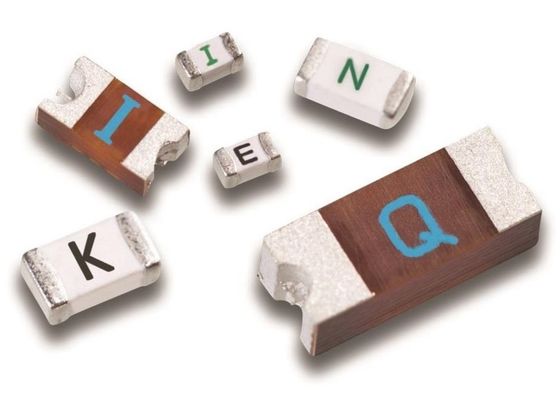

Broad range of surface mount chip fuses to provide optimal overcurrent protection in dense secondary circuits. These circuits are found in consumer electronics, such as battery operated, handheld, and portable electronic devices including laptops, cell phones, GPS systems, PDAs and many other devices which continue to demand increasingly smaller componentsThe range of fuses is offered with quick, super-quick-acting, and time-lag characteristics. Each fuse series boasts unique performance characteristics such as low voltage drop and high breaking capacity. The current ratings range from 50 mA to 25 A. Rated voltage for these components are up to 125 VAC/VDC.
Quick Details
Testing Standard:UL248-1 UL248-14
Interrupting Rating:50 Amperes at 125V AC/DC
Operating Temperature:-55℃ ~+125℃
Materials:
Substrate:ceramic/glass cover
Termination:sliver over-plated with nickel and tin
Element:silver
Soldering Method:
Reflow soldering: 260℃, 10s max

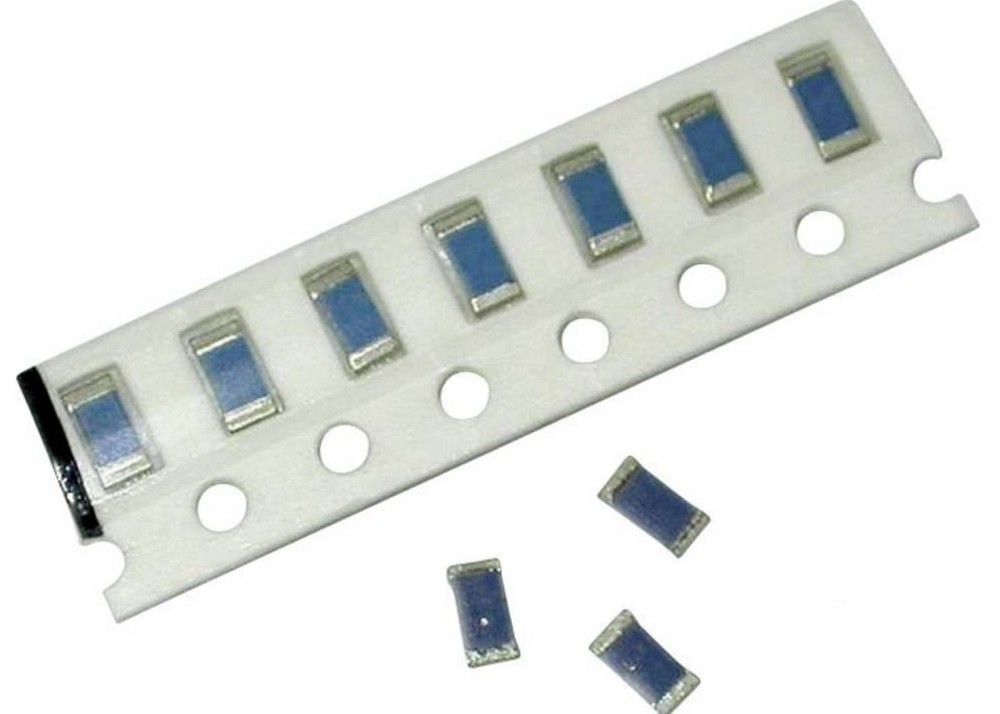

Packaging:
Automaton taped 3000PCS per rell,
90000PCS per carton
Dimension in mm
Specification
| Catalog | Ampere | Voltage | Marking |
Melting Integral |
| No. | Rating | Rating | (A2.S) | |
| 12B0250B | 250mA | 125V | .25 | 0.0035 |
| 12B0375B | 375mA | 125V | E | 0.0011 |
| 12B0500B | 500mA | 125V | 0.5 | 0.0020 |
| 12B0750B | 750mA | 125V | .75 | 0.0053 |
| 12B1100B | 1A | 125V | 1 | 0.0062 |
| 12B1125B | 1.25A | 125V | J | 0.022 |
| 12B1150B | 1.5A | 125V | 1.5 | 0.028 |
Electrical Characteristics
| Ampere Rating | Ampere Rating | Opening Time | ||
| 250mA～1.5A | 100% | 4 hours Min | ||
| 250mA～1.5A | 250% | 5 s Max | ||
Time-Current Characteristics
Applications
- Applications where high reliability and availability is needed
- Medical equipment
- Offshore
- Defense
Environmental data
Soldering Methods Reflow, Wave Soldering Profile
Solderability 245°C / 3sec acc. to IEC 60068-2-58, Test Td
Resistance to Soldering Heat 260 +0/-5°C / 30sec acc. to IPC/JEDEC J-STD-020D, Level 1
Life Test MIL-STD-202, Method 108A 1000h @ 0.60 x In @ 70°C
Load Humidity Test MIL-STD-202, Method 103B 0.1 x In @ 0.85 r.H. @ 85°C
Moisture Resistance Test MIL-STD-202, Method 106E (50 cycles in a temp./mister chamber)
Terminal Strength MIL-STD-202, Method 211A (Deflection of board 1 mm for 1 minute)
Thermal Shock MIL-STD-202, Method 107D (200 air-to-air cycles from -55 to +125°C)
Resistance to Solvents MIL-STD-202, Method 215A
Flammability min. UL 94V-1 (acc. to EIA/IS-722, Test 4.12)
Derating Curves
Features
Current ratings from 50 mA to 25 A
Rated voltages up to 125 VAC/VDC
High breaking capacity up to 600 A (internal tests)
Super-quick-acting (FF), quick-acting (F), and time-lag (T)
Precise, low loss, resistant to vibrations and pulses
