300mm Micro Temperature Sensor , DS18B20 Waterproof Temperature Sensor

Product Description

300mm Micro Temperature Sensor , DS18B20 Waterproof Temperature Sensor

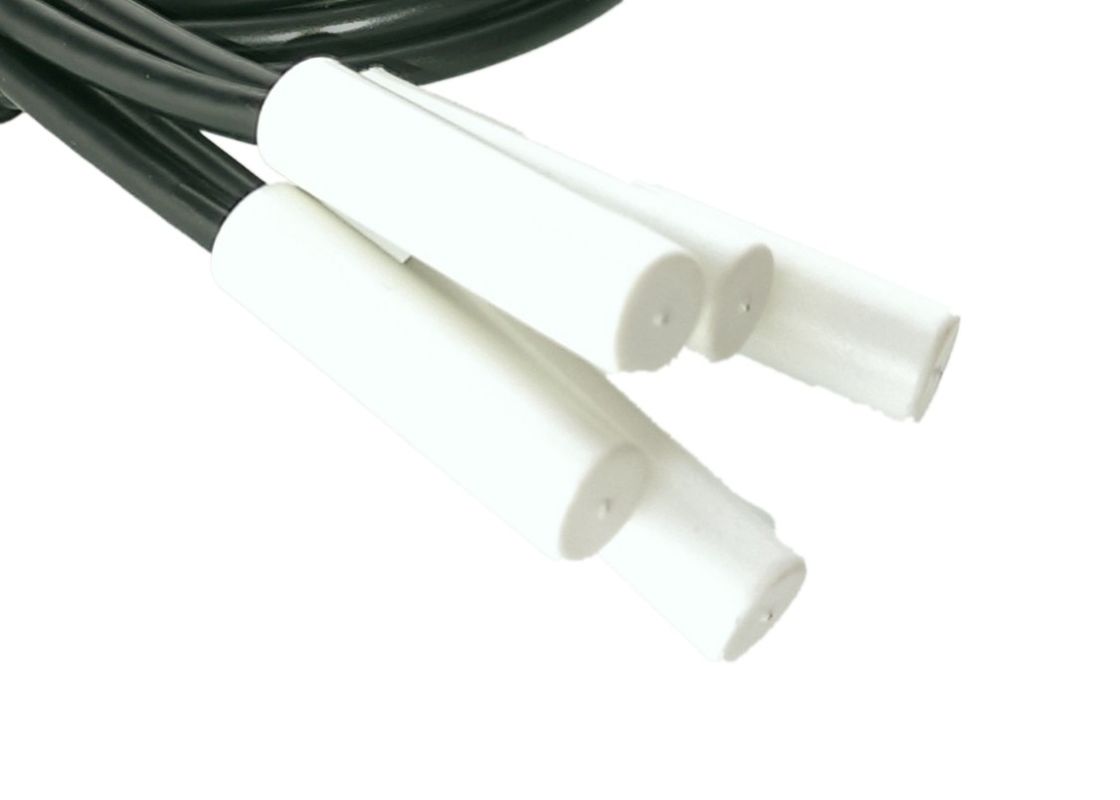

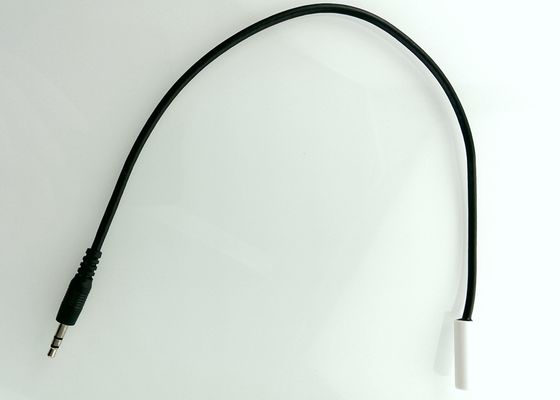

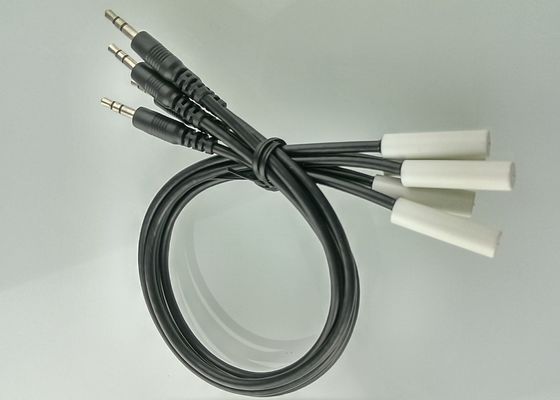

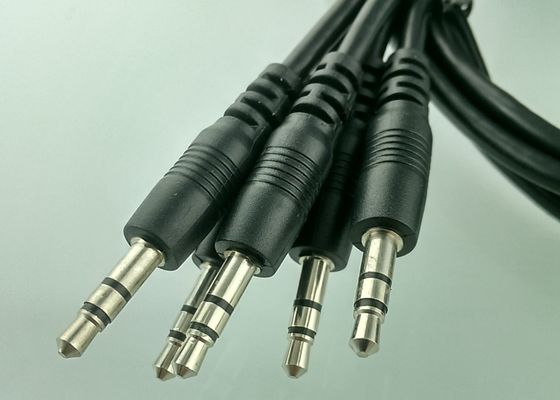

Tutorial Fish Tank Digital Thermometer Waterproof DS18B20 Micro Temperature Sensor 300mm With 3.5mm Audio Jack


Application
Thermostatic Controls; Industrial Systems; Consumer Products; Thermometers; Any Thermally Sensitive System,Fish Tank (saltwater environment).

__________________________________________________________________________ Download________


Dimension  (mm)




Internal Wiring Diagram



Pin 1 Soldering to black GND ;
Pin 2 Soldering to white DQ ;
Pin 3 Soldering to red VDD;


Material List




Description

This is the latest DS18B20 digital temperature sensor from Maxim IC. Reports degrees C with 9 to 12-bit precision, -55C to 125C (+/-0.5C). Each sensor has a unique 64-Bit Serial number etched into it - allows for a huge number of sensors to be used on one data bus. This is a wonderful part that is the corner stone of many data-logging and temperature control projects.


Structure

DS18B20 is a waterproof temperature sensor packed in a metal and waterproof housing. For communication with Croduino/Arduino, it uses only one wire and it is possible to put up to 127 sensors on one code and measure temperature in 127 different places by using just one wire!


Features

Ambient temperature range wall mount.
High impact ABS plastic enclosure.
Surface or wall mount.
Available with a Maxim DS18S20
No external power required, or can be optionally powered for faster operation.
Automatic unique device addressing.
Wide temperature measuring range: -55℃ to +125℃ (-67℉to +257℉)
Adopts ds18b20 temperature sensor chip, high accuracy and sensitive
Each pin of the chip is separated by heat Shrinkable pipe and sealed by adhesive inside, avoid short circuit and waterproof
Ideal choice for environment, Lab, refrigerator, car, Green house temperature monitoring
Flexibility resistance, Better thermal conductivity.
Power supply range : 3.0V to 5.5V
Operating temperature range : -55°C to +125°C (-67°F to +257°F)
Storage temperature range : -55°C to +125°C (-67°F to +257°F)
Accuracy over the range of -10°C to +85°C : ±0.5°C.


Specification


Temperature Range (Teflon):	-55 to 125 ºC
Accuracy (-10 to +85 ºC):	-0.5 to +0.5 ºC
Accuracy (-55 to +122 ºC):	-2 to +2 ºC
Resolution (DS18S20):	0.5 ºC
Resolution (DS18B20) - Programmable:	0.0625 or 0.5 ºC
Supply Voltage:	3.0 - 5.5 Volts
Active Current:	1 MilliAmp
Standby Current:	100 NanoAmps
Input Logic High:	2.2 - 5.5 Volts
Input Logic Low:	-0.3 - +0.8 Volts
Dimensions (L X W X D):	2.40 X 1.85 X 0.93 Inches





This guide explores how to connect a DS18B20 one-wire temperature sensor to a CircuitPython board and read its temperature from Python code using a few simple CircuitPython modules.



DS18B20 temperature sensors like the DS18B20 are devices that can measure temperature with a minimal amount of hardware and wiring. These sensors use a digital protocol to send accurate temperature readings directly to your development board without the need of an analog to digital converter or other extra hardware. You can get one-wire sensors in different form factors like waterproof and high temperature probes--these are perfect for sensing temperature in many different projects and applications. And since these sensors use the one-wire protocol you can even have multiple of them connected to the same pin and read all their temperature values independently. With just a few connections and some CircuitPython code you'll be sensing temperature in no time!





DS18B20 Programmable Resolution 1-Wire Digital Thermometer



For detailed datasheet, pls download PDF here :    _______________________ Download________
