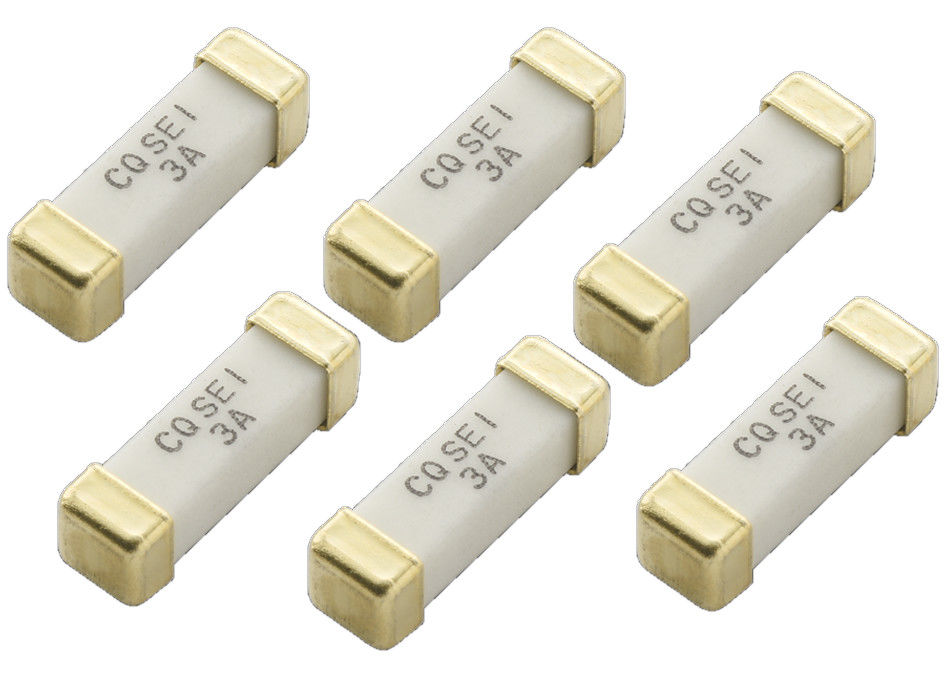

• Gold Plated Ceramic 3 Amp 250 Volt Slow Blow Fuse
Gold Plated Ceramic 3 Amp 250 Volt Slow Blow Fuse

Gold Plated Ceramic 3 Amp 250 Volt Slow Blow Fuse

Product Details:

Certification: TUV UL
Model Number: SEI 003

Payment & Shipping Terms:

Minimum Order Quantity: 2500PCS
Price: Negotiable
Packaging Details: Tape & Reel: 24mm tape
Delivery Time: 2 Weeks
Payment Terms: T/T
Supply Ability: 2KKPCS Per Month
Get Best Price Contact Now

Detail Information

Type: Slow Blow Fuse Dimension: 10.1*3.1*3.1 Mm
Body Material: Ceramic Speed: Slow Blow
Rated Voltage: 250V Rated Current: 500mA~5A
High Light:

3 amp 250 volt slow blow fuse


10.1mm 3 amp 250 volt slow blow fuse


3A ceramic slow blow fuse

Product Description

Gold Plated Ceramic 3 Amp 250 Volt Slow Blow Fuse


Lighting System 10.1x3.1x3.1 mm Surface Mount Device Ceramic Slow Blow Fuse 1032 250V 3A SEI 003 With Gold Plated




Recognized Component for Canada and U.S. 500mA~5A
TUV 500mA~5A





Interrupting Rating: 50 amperes at 250V AC

Body material : Ceramic
Terminations: Gold Plated Brass Caps

Tape & Reel: 24mm tape
Packing Specification: EIA RS-481-2
Quantity: 2,500 pcs per reel.

Application: Telecom Equipment System Power, Lighting System

Lead free materials and RoHS compliant

Halogen free (refers to: Br900ppm, Cl900ppm, Br+Cl1500ppm)

Monolithic, multilayer design

High-temperature performance

-55°C to +125°C operating temperature range



Electrical Characteristic


Rate current 1 In 2.5 In
Min. Max.
500mA-5A 4 hour 120 sec



Environmental Specification


Operating Temperature
-55°C to +125°C
Vibration MIL-STD-202G, Method 201(10-55 Hz, 0.06 inch, total excursion)
Salt Spray MIL-STD-202G, Method 101, Test Condition B (48Hrs)
Insulation Resistance MIL-STD-202G, Method 302, Test Condition A
Resistance to Solder Heat MIL-STD-202G, Method 210, Test Condition B (10sec, at 260°C)
Thermal Shock MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)


Mechanical Dimension(mm)


Gold Plated Ceramic 3 Amp 250 Volt Slow Blow Fuse 0



Ordering information


P/N Ampere
[ In ]
( V )
Cold Ohms
Melting I²t
A² Sec
SEI .500 500mA 250V 0.5479 1.963
SEI .750 750mA 0.2600 3.375
SEI 001 1A 0.1800 11.22
SEI 1.50 1.5A 0.1027 14.85
SEI 002 2A 0.0504 19.84
SEI 2.50 2.5A 0.0370 20.50
SEI 003 3A 0.0280 54.00
SEI 3.50 3.5A 0.0199 57.82
SEI 004 4A 0.0158 125.6
SEI 005 5A 0.0120 185.0



Selecting Surface-mount Fuses

Fuse selection seems straightforward, in that, you pick one which has a current rating just a bit higher than your worstcase system operating current. Unfortunately, it’s not that simple. There are derating considerations for operating current and application temperature. Turn-on and other system operations (like processor speed changes or motor start up) cause current surges or spikes that also require consideration when selecting a fuse. So selecting the right fuse for your application is not as simple as knowing the nominal current drawn by the system.





• High inrush current withstanding capability

• Ceramic Monolithic structure

• Silver fusing element and silver termination with nickel and tin plating

• Excellent temperature stability

• Strong arc suppression characteristics
