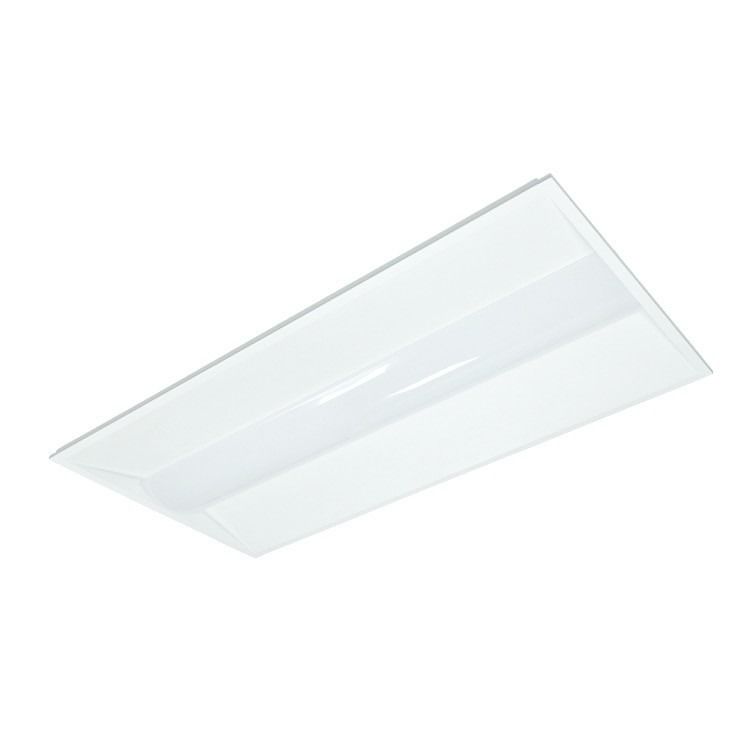

High Transmittance Mask 40W 2x4 LED Troffer Lights
Product Details:
Brand Name: | HK |
Certification: | ETL,FCC,CE,ROHS |
Model Number: | HKTF2440W |
Payment & Shipping Terms:
Minimum Order Quantity: | 500 PCS |
---|---|
Price: | Negotiate Ex-work / FOB price |
Packaging Details: | Negotiate |
Delivery Time: | 10 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 5,0000 pcs / Month |
Detail Information |
|||
LED Qty: | 2835 LED Chip | Light Source: | LED |
---|---|---|---|
Style: | LED Troffer Light | Rated Input Voltage/V: | AC100-277V |
HZ: | 60HZ | SDCM: | <5 |
UGR: | Microprismatic ( LOW UGR) | THD: | <20% |
High Light: | 40W 2x4 LED Troffer Lights,2x4 led troffer lights,4400LM led troffer panel light |
Product Description
High Transmittance Mask 40W 2x4 LED Troffer Lights
High Transmittance Mask 2X4 40W LED Troffer Light / Four Color Temperatures

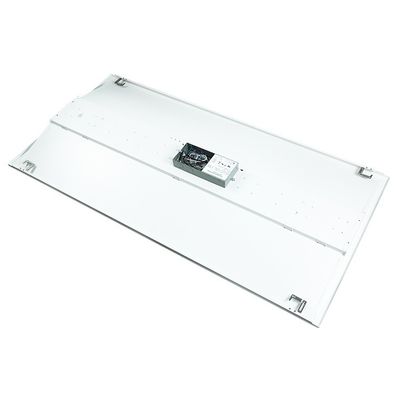

CONSTRUCTION of LED Troffer Light:
1. Galvanized steel body.
2. Reflective white finish improves retrofit efficacy.
3. Standard Dimension for 2x4 & 2x2 Retrofits
4. Fits Most of Existing 2x4 Troffer without having to remove the fixture.
CONTROL of 2x2 2x4 LED Troffer:
ARK Lensed Retrofit Kits are supplied with a 0-10v simple dimming driver Compatible with standard 0-10v dimming controls.
Model No | HKTF2230W | HKTF2240W | HKTF2440W | HKTF2450W |
Power/W | 30W | 40W | 40W | 50W |
Lumen output/LM | 3300LM | 4400LM | 4400LM | 5500LM |
Size | 600X70mm | 1200X70mm | ||
Style | LED Troffer light | |||
Rated Input Voltage/V | AC100-277V | |||
HZ | 60HZ | |||
Light Source | LED | |||
SDCM | <5 | |||
LED Qty | 2835 LED chip | |||
CCT/K | 2700-5700K or CCT adjustable | |||
Ra | >80 | |||
PF | >0.95 | |||
THD | <20% | |||
Beam Angle | 120 | |||
UGR | Microprismatic ( LOW UGR) | |||
Surge Protection | 1000V | |||
LED Driver | SS | |||
Sensor | optional | |||
Emergency | optional | |||
Protection Class | CLASS 2 | |||
Finishing Color | WH | |||
Material | steel | |||
Cover Style | PC | |||
Style | Traditional | |||
Mounting | surface mount | |||
Lifespan/h | >50000h (Ta=30℃ @ L70) | |||
Environmental location | Damp location | |||
Operation Temp/℃ | -40℃ ~ 50℃(-40℉ ~ 122℉) | |||
Storange Temp/℃ | -40℃ ~ 80℃(-40℉ ~ 176℉) | |||
Certificate | UL/FCC/ROHS/CE/SAA |
Our service:
1. Your inquiry related to our 3'' 4'' 6'' led down light with junction box driver or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
Advantages
1. High end quality CE RoHS certificated, and the quality approved by American and European countries.
2. Longer life time over 50000hrs
3. High efficiency saving the energy.
4. High value with a competitive price, etc.
