ISO 8820 Green 58 Volt 30 Amp Low Profile Mini Fuse
Product Details:
| Place of Origin: | CHINA |
| Model Number: | BFLP 1199 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000,000 Pieces/Month |
|
Detail Information |
|||
| Fuse Type: | Mini Blade Fuse | Rated Voltage: | DC58V And Less |
|---|---|---|---|
| Breaking Capacity: | 1000A | Rated Current: | 30A |
| Operation Temperature: | -40℃ - 80℃ | Standard: | ISO8820-9 |
| Highlight: | Green 30 amp low profile mini fuse,ISO 8820 30 amp low profile mini fuse,30A green car fuse |
||
Product Description

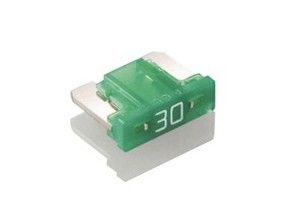

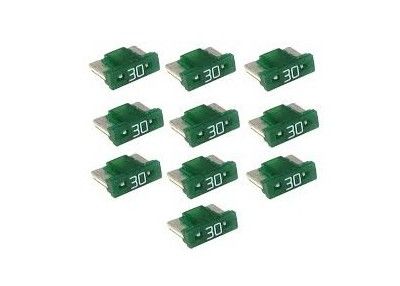

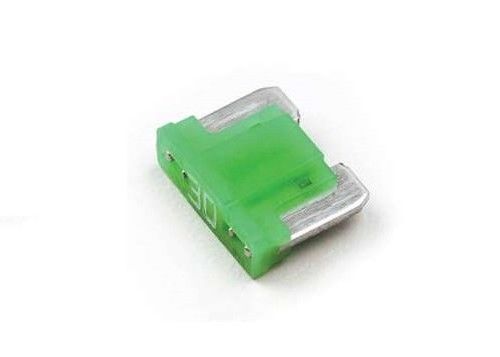

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive
Quick Specifications
Automotive fuses that are most used by the automotive manufacturers in the world
► Rated Voltage: DC58V and less
► Breaking Capacity: 1000A
► Operation Temperature: -40℃ - 80℃
► Standard Packaging :20,000
► Standard: ISO8820-9
Dimension (mm)
Electrical Performances
| Ampere Rating(A) | Part Number | Housing Colors | Resistance Value | Voltage Drop |
| 2A | 1190 | Gray | 46.6 mΩ | 126 mV |
| 3A | 1191 | Violet | 33.7 mΩ | 137 mV |
| 4A | 1192 | Pink | 20.6 mΩ | 109 mV |
| 5A | 1193 | Tan | 16.5 mΩ | 115 mV |
| 7.5A | 1194 | Brown | 10.2 mΩ | 105 mV |
| 10A | 1195 | Red | 7.38 mΩ | 104 mV |
| 15A | 1196 | Blue | 4.55 mΩ | 97 mV |
| 20A | 1197 | Yellow | 3.25 mΩ | 94 mV |
| 25A | 1198 | White(natural) | 2.50 mΩ | 93 mV |
| 30A | 1199 | Green | 1.94 mΩ | 88 mV |
※The fuse characteristic may change depending on the conditions of use.
Time-Current Characteristics
| % of Ampere Rating(A) | Operating Time | |
| MIN | MAX | |
| 110% | 100 hrs. | - |
| 135% | 0.75 sec. | 600 sec. |
| 160% | 0.25 sec. | 50 sec. |
| 200% | 0.15 sec. | 5 sec. |
| 350% | 0.04 sec. | 0.5 sec. |
| 600% | 0.02 sec. | 0.1 sec. |
※The fuse characteristic may change depending on the conditions of use.
Time-Current Characteristics Chart
Suitable Blade Fuse Holder
Blade Fuse Series Introduction
|
BFSL Mini Blade Fuse : This state-of-the-art blade fuse was realized by reducing the width of the BFMN to offer space reduction |
BFSL-3 Auto Fuse : BFSL-3 is a multi terminal state-of-the-art blade fuse |
|
BFLP Automotive Fuse : BFLP is a lower-cost and more compact BFMN |
BFMN Car Fuse : BFMN is a lower-cost and more compact BFAT |
|
BFMN-S Auto Fuse :The BFMN-S is a blade fuse with excellent self-extinguising properties equivalent to UL standard V-0 |
BFAT-D Medium Blade Fuse The BFAT-D is blade fuse that had spread extensively in non-automotive application |
|
BFAT-S Car Blade Fuse : The BFAT-S is a BFAT with Ag plated terminals |
|
What is an blade Fuse?
The ATO blade fuse is an automotive style fuse that was developed by Littelfuse and is a standard for original equipment cars, busses and trucks. The ATO fuse is also used in a wide range of low voltage, electronic applications. An alternative ATO style fuse design features a three-part construction and a see-through window for blown fuse indication. They are color coded for amperage rating identification. The automotive blade ATO Style fuses are fast acting, fuses and are offered with 32, 58, 80 and 90 volt DC ratings. Ampere ratings for the ATO blade fuses range from 1 to 40 amps. The standard 32 volt ATO fuse is built in accordance with the UL 248-14,, Special Purpose Fuse standard. Agency approvals, vary for other versions of the ATO fuse.
