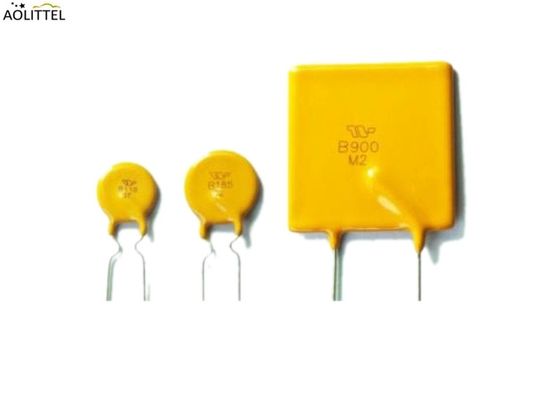

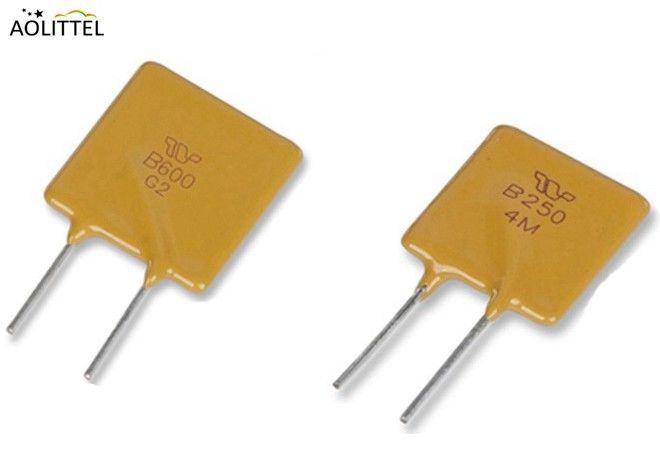

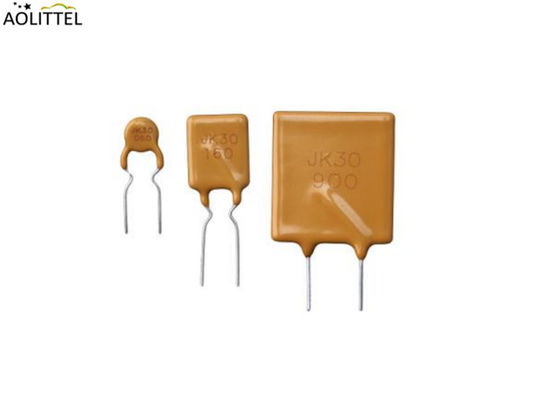

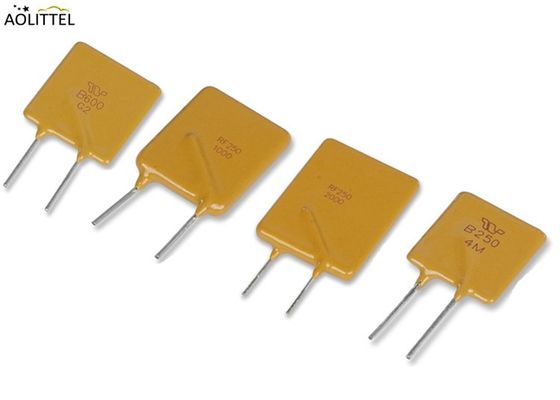

Lead Free Resettable Polyfuse 2.5A Self Resetting Fuse

Lead Free Resettable Polyfuse 2.5A Self Resetting Fuse

Product Details:

Certification: UL,CAS,TUV,RoHS 2.0(2011/65/CE)
Model Number: TRB250

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Pieces
Price: Pls consult us
Packaging Details: Bulk,500pcs per bag.
Delivery Time: 10 Working days
Payment Terms: T/T
Supply Ability: 8,000,000 Pieces Per Month
Get Best Price Contact Now

Detail Information

Product Name: Polyfuse Polymer PTC Resettable Fuse Thermistor Mounting: Through Hole
Holding Current: 2.5A Trip Current: 5A
Max.Voltage: 30VDC Operating Temperature Min: -40°C
Operating Temperature Max: +85°C Lead Material: Tin Plated Copper
Soldering Characteristic: MIL-STD-202, Method 208E Insulating Coating: Flame Retardant Epoxy
High Light:

30VDC self resetting fuse


2.5A self resetting fuse


30VDC resettable polyfuse

Product Description

Lead Free Resettable Polyfuse 2.5A Self Resetting Fuse

Battery Packs Low Resistance RUEF250 Polyfuse Polymer PTC Resettable Fuse With Max Voltage 30V Hold Current 2.5A





The TRB250 PTC Resettable Fuse from Ao littel is a radial leaded PolySwitch resettable device. It provides engineers with more design flexibility. The higher voltage ratings allow this device to use in new applications and it is compatible with high volume electronics assembly.


______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________



Electrical Characteristics


P/N Hold Cu Trip Cu. Max.vol Max.curr Max. trip time Power Resistance(Ω)
IH, (A) IT,(A) Vmax,(v) Imax,(A) (A) (Sec.) Pd typ(W) Rmin Rtyp R1max
TRB090 0.90 1.80 30 40 4.50 5.9 0.60 0.090 0.230 0.300
TRB110 1.10 2.20 30 40 5.50 6.6 0.70 0.060 0.160 0.260
TRB120 1.20 2.40 30 40 6.00 6.5 0.70 0.050 0.115 0.255
TRB135 1.35 2.70 30 40 6.75 7.3 0.80 0.040 0.095 0.170
TRB160 1.60 3.2 30 40 8.00 8.0 0.90 0.030 0.095 0.160
TRB185 1.85 3.7 30 40 9.25 8.7 1.00 0.030 0.070 0.110
TRB250 2.50 5.0 30 40 12.5 10.3 1.20 0.020 0.048 0.072
TRB300 3.00 6.00 30 40 15.0 10.8 2.00 0.015 0.050 0.075
TRB400 4.00 8.00 30 40 20.0 12.7 2.50 0.010 0.030 0.045
TRB500 5.00 10.00 30 40 25.0 14.5 3.00 0.008 0.025 0.045
TRB600 6.00 12.00 30 40 30.0 16.0 3.50 0.005 0.020 0.030
TRB700 7.00 14.00 30 40 35.0 17.5 3.80 0.003 0.016 0.025
TRB800 8.00 16.00 30 40 40.0 18.8 4.00 0.004 0.015 0.023
TRB900 9.00 18.00 30 40 40.0 20.0 4.00 0.004 0.010 0.015
Product Dimensions & Marking (Unit: mm)
Lead Free Resettable Polyfuse 2.5A Self Resetting Fuse 1            Lead Free Resettable Polyfuse 2.5A Self Resetting Fuse 2                   Lead Free Resettable Polyfuse 2.5A Self Resetting Fuse 3
    Style 1                       Style 2                              Style 3
Lead Free Resettable Polyfuse 2.5A Self Resetting Fuse 4


P/N A B C D E Physical Characteristics
Max. Max. Typ. Min. Max. Style Lead Φ mm Material
TRB090 7.4 12.2 5.1 7.6 3.1 3 0.50 CP
TRB110 10.7 16.7 5.1 7.6 3.1 1 0.50 CP
TRB120 10.7 16.7 5.1 7.6 3.1 1 0.50 CP
TRB135 10.7 16.7 5.1 7.6 3.1 1 0.50 CP
TRB160 11.0 16.8 5.1 7.6 3.1 1 0.60 CU
TRB185 11.5 17.9 5.1 7.6 3.1 1 0.60 CU
TRB250 13.0 18.3 5.1 7.6 3.1 2 0.60 CU
TRB300 13.0 18.3 5.1 7.6 3.1 2 0.81 CU
TRB400 16.4 24.8 5.1 7.6 3.1 2 0.81 CU
TRB500 21.3 26.4 10.2 7.6 3.1 2 0.81 CU
TRB600 20.8 29.8 10.2 7.6 3.1 2 0.81 CU
TRB700 20.8 29.8 10.2 7.6 3.1 2 0.81 CU
TRB800 24.2 32.9 10.2 7.6 3.1 2 0.81 CU
TRB900 24.2 32.9 10.2 7.6 3.1 2 0.81 CU



Typical time to trip at 25℃


The Time to Trip curves represent typical performance of a device in a simulated application environment. Actual performance in specific customer applications may differ from these values due to the influence of other variables.



Lead Free Resettable Polyfuse 2.5A Self Resetting Fuse 5


















• Professional/flexible design advices from our technical team

• Compatible with high-volume electronics assembly

• Help customer achieve agency approvals

• Higher voltage ratings allow use in new applications





Fast time to trip
Low resistance
UL, CSA, TUV and RoHS approved
Hold current of 2.5A at room temperature
Maximum voltage of 30V
Maximum current of 40A
Trip current of 5A at 25C
Operation temperature range from -40°C to 85°C
UL94 V-0 flame retardant epoxy polymer insulation





• Satellite video receivers

• Industrial controls

• Transformers

• Computer motherboards

• Modems PolySwitch Resettable Devices Radial-leaded Devices Benefits Features Applications

• USB hub, ports and peripherals

• IEEE1394 ports


• Game machines

• Battery packs

• Phones

• Fax machines

• Analog and digital line cards

• Printers



Protecting against overcurrent incidents,Fuse or PTC?


When it comes to overcurrent protection ofelectronic equipment, fuses have long been the standard solution.They come in a wide variety of ratings and mounting styles to fitvirtually any application.

When they open, they completely stop the flow ofelectricity, which may be the desired reaction. The equipment orcircuit is rendered inoperable, which draws the user’sattention to what may have caused the overload condition so thatcorrective action can be taken.

Nevertheless, there are circumstances andcircuits where autorecovery from a temporary overload without userintervention is desirable. Positive temperature coefficient (PTC)thermistors — also called resettable fuses or polymericpositive temperature coefficient devices (PPTCs) — are anexcellent way of achieving this type of protection.


How a PTC works


A PTC consists of a piece of polymer materialloaded with conductive particles (usually carbon black). At roomtemperature the polymer is in a semicrystalline state and theconductive particles touch each other, forming multiple conductivepaths and providing low resistance (generally about twice that of afuse of the same rating).

When current passes through the PTC itdissipates power (P = I2R) andits temperature increases. As long as the current is less than itsrated hold current (Ihold), thePTC will remain in a low-resistance state and the circuit willoperate normally.

When the current exceeds the rated trip current(Itrip), the PTC heats upsuddenly. The polymer changes to an amorphous state and expands,breaking the connections between the conductive particles.

This causes the resistance to increase rapidlyby several orders of magnitude and reduces the current to a low(leakage) value just sufficient to keep the PTC in thehigh-resistance state — generally from around tens toseveral hundred milliamps at rated voltage (Vmax). When the power is shut off thedevice cools down and returns to its low-resistance state.


PTC and fuse parameters


Like a fuse, a PTC is rated for the maximumshort-circuit current (Imax) itcan interrupt at rated voltage. Imax for a typical PTC is 40 A, and mayreach 100 A. Interrupt ratings for fuses of the sizes that may beused in the sorts of applications we are considering here can rangefrom 35 to 10,000 A at rated voltage.

The voltage rating for a PTC is limited. PTCsfor general use are not rated above 60 V (there are PTCs fortelecom application with 250 and 600 V interrupting voltage, buttheir operating voltage is still 60 V); SMT and small-cartridgefuses are available with ratings from 32 to 250 V or more.

The operating current rating for PTCs ranges toabout 9 A, while the maximum level for fuses of the typesconsidered here can exceed 20 A, with some available to 60 A.

The useful upper temperature limit for a PTC isgenerally 85C, while the maximum operating temperature forthin-film SMT fuses is 90C, and for small-cartridge fuses is 125C.Both PTCs and fuses require derating for temperatures above 20C,although PTCs are more sensitive to temperature.

When designing in any overcurrent protectivedevice, be sure to consider factors that may affect its operatingtemperature, including the effect on heat removal of leads/traces,any air flow, and proximity to heat sources. The speed of responsefor a PTC is similar to that of a time-delay fuse.


Common PTC applications


Much of the design work for personal computersand peripheral devices is strongly influenced by the Microsoft andIntel System Design Guide which states that “Using a fusethat must be replaced each time an overcurrent condition occurs isunacceptable.” And, the SCSI Standard for this largemarket includes a statement that “....a positivetemperature coefficient device must be used instead of a fuse, tolimit the maximum amount of current sourced.”

PTCs are used to provide secondary overcurrentprotection for telephone central office equipment, customerpremises equipment, alarm systems, set-top boxes, VOIP equipment,and subscriber line interface circuits. They provide primaryprotection for battery packs, battery chargers, automotive doorlocks, USB ports, loudspeakers, and PoE.

SCSI plug-and-play applications that benefitfrom PTCs include the motherboard and the many peripherals that canbe frequently connected to and disconnected from the computerports. The mouse, keyboard, printer, modem, and monitor portsrepresent opportunities for misconnections, and connections offaulty units or damaged cable. The ability to reset aftercorrection of the fault is particularly attractive.

A PTC can protect disk drives from thepotentially damaging overcurrents resulting from excessive currentfrom a power supply malfunction. PTCs can protect power suppliesagainst overloading; individual PTCs can be placed in the outputcircuits to protect each load where there are multiple loads orcircuits.

Motor overcurrents can produce excessive heatthat may damage the winding insulation and for small motors mayeven cause a failure of the very small diameter wire windings. ThePTC will generally not trip under normal motor start up currents,but will act to prevent a sustained overload from causingdamage.

Transformers can be damaged by overcurrentscaused by circuit faults, and the current limiting function of aPTC can provide protection. The PTC is located on the load side ofthe transformer.


Fuse or PTC?


The following procedure will help in selectingand applying the correct component. Help is also available fromdevice suppliers. For unbiased advice it’s wise to lookfor a company that offers both fuse and PTC technology.


1. Define the circuit operating parameterstaking into consideration:


Normal operating current in amperes

Normal operating voltage in volts

Maximum interrupt current

Ambient temperature/rerating

Typical overload current

Required opening time at specific overload

Transient pulses expected


Resettable or one-time

Agency Approvals

Mounting type/form factor

Typical resistance (in circuit):

2. Select a prospective circuit protectioncomponent (See table)

3. Consult the time-current (T-C) curve todetermine if the selected part will operate within the constraintsof the application.

4. Ensure that the application voltage is lessthan or equal to the device’s rated voltage and that theoperating temperature limits are within those specified by thedevice. If using a PTC, thermally derate Ihold using the equation below.


Ihold =derated Ihold

Thermal derating factor


5. Compare the maximum dimensions of the deviceto the space available in the application.

6. Independently test and evaluate suitabilityand performance in the actual application.
