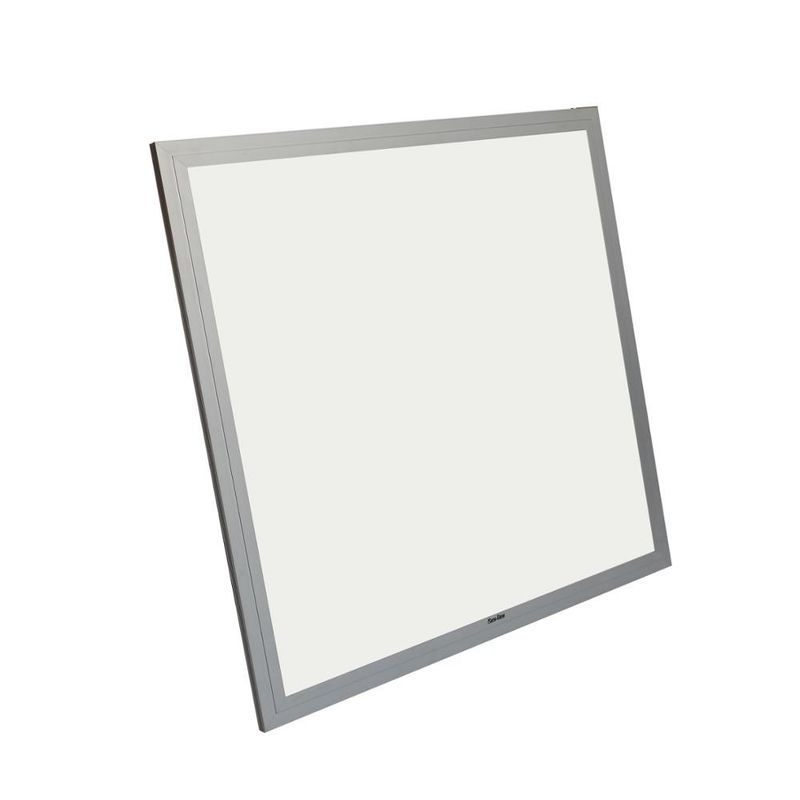

Office Aluminum Shell P7 50W 2x4 Ceiling LED Panel Light
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | HK |
| Certification: | ETL,FCC,CE,ROHS |
| Model Number: | HKBLP750W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Negotiate |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,0000 pcs / Month |
|
Detail Information |
|||
| Rated Input Voltage/V: | AC100-277V | HZ: | 60HZ |
|---|---|---|---|
| Light Source: | LED | SDCM: | ＜5 |
| LED Qty: | 2835 LED Chip | CCT/K: | 2700-5700K Or CCT Adjustable |
| Highlight: | P7 2x4 Ceiling LED Panel Light,2x4 Ceiling LED Panel Light,2x4 drop ceiling led lights |
||
Product Description
Office All Aluminum Die Casting Shell P7 2X4 50W LED Panel Light
1. Ultra slim structure with thickness 10mm
2. Instant on/off, no noise, no UV, no light leak, no shadow.
3. Mitsubishi diffuser + 6063 aluminum frame, silver/white/black color available
4. SDCM<4 , Meets ANSI and Erp Regulations, L80B50 (Ta = 25℃)>75000Hrs
5. IK06, IP20, Glow wire test 850℃
6. Non-dimming, triac dimming, 0~10v dimming, cct dimming, DALI, Meanwell, UGR<19 version available
7. With ENEC/UL/SAA No Flickering Led Power Supply , 5 years warranty
8. Comply with UL,DLC ,SAA, TUV-GS ,CE requirements
9. Support recessed, suspended, surface mounted installation

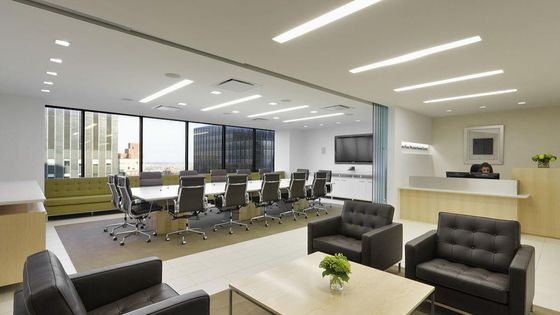

10. Widely Application : Office/Hospital/University/School /Show room...
| Model No | HKBLP130W | HKBLP140W | HKBLP430W | HKBLP440W | HKBLP740W | HKBLP750W |
| Power/W | 30W | 40W | 30W | 40W | 40W | 50W |
| Lumen output/LM | 3200LM | 4200LM | 3200LM | 4200LM | 4200LM | 5300LM |
| Size | 1X4 | 1X4 | 2X2 | 2X2 | 2X4 | 2X4 |
| Style | LED panel light | |||||
| Rated Input Voltage/V | AC100-277V | |||||
| HZ | 60HZ | |||||
| Light Source | LED | |||||
| SDCM | ＜5 | |||||
| LED Qty | 2835 LED chip | |||||
| CCT/K | 2700-5700K or CCT adjustable | |||||
| Ra | ＞80 | |||||
| PF | ＞0.95 | |||||
| THD | ＜20% | |||||
| Beam Angle | Rotatable light source | |||||
| UGR | Microprismatic ( LOW UGR) | |||||
| Surge Protection | 3000V | |||||
| LED Driver | SS | |||||
| IP Rating | IP65 | |||||
| Dimming | 0-10V | |||||
| Sensor | Optional | |||||
| Emergency | Optional | |||||
| Protection Class | Class 2 | |||||
| Finishing Color | WH | |||||
| Material | Steel | |||||
| Cover Style | PS | |||||
| Mounting | Surface Mounted | |||||
| Lifespan/h | >50000h (Ta=30℃ @ L70) | |||||
| Environmental location | Damp location | |||||
| Operation Temp/℃ | -40℃ ～ 50℃(-40℉ ～ 122℉) | |||||
| Storange Temp/℃ | -40℃ ～ 80℃(-40℉ ～ 176℉) | |||||
| Certificate | UL/FCC/ROHS/CE/SAA | |||||
led downlight features:
1. Light body aluminium,solid structure and precision,plating process is durable
2. Luminous uniform,high brightness,scrub the surface astigmatism design to effcetively change the light refraction angle light diffusion angle greater
3. High transmittance mask,to improve the efficiengy of light, green,energy saving
4. DOB linear power solution, small size, high luminous efficiency
Advantages
1. High end quality CE RoHS certificated, and the quality approved by American and European countries.
2. Longer life time over 50000hrs
3. High efficiency saving the energy.
4. High value with a competitive price, etc.
