P7 40W LED Commercial Electric LED Flat Panel 2x4
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | HK |
| Certification: | ETL,FCC,CE,ROHS |
| Model Number: | HKBLP740W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Negotiate |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,0000 pcs / Month |
|
Detail Information |
|||
| Light Source: | LED | SDCM: | ＜5 |
|---|---|---|---|
| LED Qty: | 2835 LED Chip | CCT/K: | 2700-5700K Or CCT Adjustable |
| Ra: | ＞80 | PF: | ＞0.95 |
| Beam Angle: | Rotatable Light Source | Surge Protection: | 3000V |
| High Light: | P7 commercial electric led flat panel 2x4,40W commercial electric led flat panel 2x4,2x4 led drop ceiling light panels |
||
Product Description

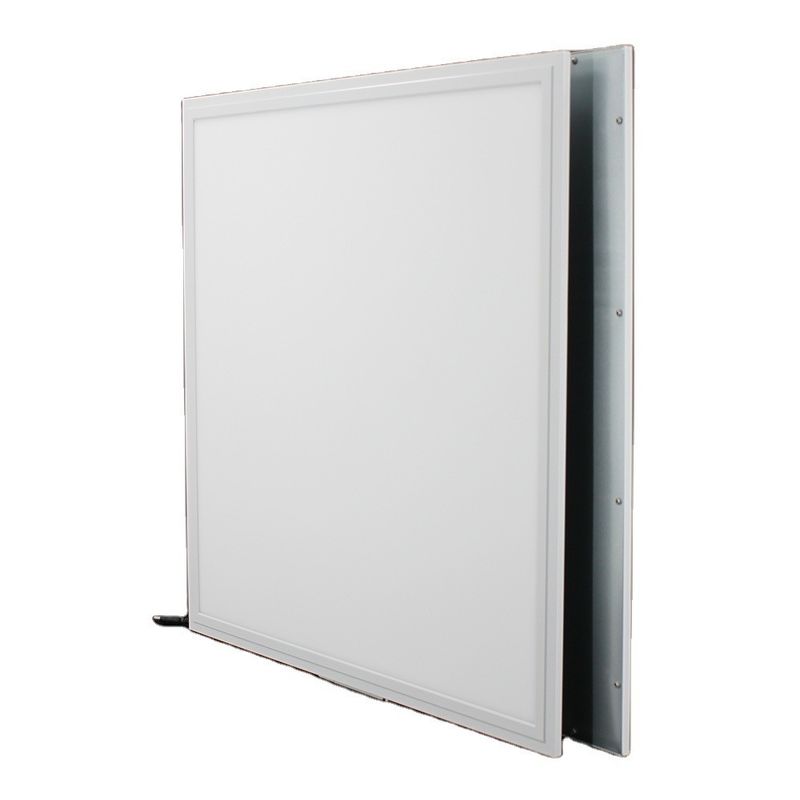

P7 40W LED Commercial Electric LED Flat Panel 2x4
Steel P7 2X4 40W LED Panel Light / Working Time ( Hours ) : 25000
Features and Advantages:
* Ultra-thin Slice led panel light, IK06 IP40 approved
* TUV-GS (S50395351) , SAA (SAA170039 ), CE, RoHS Certified
* Efficacy: 100lm/w ± 5%, Up to 125lm/w
* ENEC Certifed flicker free driver, support dimming
* Instant on/off, edge-lit, no dark area, anti-yellowing
* Material: High-quality Aluminum + PMMA
* High CRI: Ra>82, SDCM<4
* High Power factor: >0.95
* Input Voltage: AC200-240V 50/60Hz
* L80B10 Lifespan(Ta=25℃):50,000hrs, Warranty: 5 years
* CCT: 3000K: 3045±175K, 4000K: 3985±275K, 5000K: 5029±283K, 6000K: 6065±415K
* Suspending&Ceiling mounted&Recessed installation
* Application: Office/Hospital/University/School/Supermarket/Show room/Exhibition hall
| Model No | HKBLP130W | HKBLP140W | HKBLP430W | HKBLP440W | HKBLP740W | HKBLP750W |
| Power/W | 30W | 40W | 30W | 40W | 40W | 50W |
| Lumen output/LM | 3200LM | 4200LM | 3200LM | 4200LM | 4200LM | 5300LM |
| Size | 1X4 | 1X4 | 2X2 | 2X2 | 2X4 | 2X4 |
| Style | LED panel light | |||||
| Rated Input Voltage/V | AC100-277V | |||||
| HZ | 60HZ | |||||
| Light Source | LED | |||||
| SDCM | ＜5 | |||||
| LED Qty | 2835 LED chip | |||||
| CCT/K | 2700-5700K or CCT adjustable | |||||
| Ra | ＞80 | |||||
| PF | ＞0.95 | |||||
| THD | ＜20% | |||||
| Beam Angle | Rotatable light source | |||||
| UGR | Microprismatic ( LOW UGR) | |||||
| Surge Protection | 3000V | |||||
| LED Driver | SS | |||||
| IP Rating | IP65 | |||||
| Dimming | 0-10V | |||||
| Sensor | Optional | |||||
| Emergency | Optional | |||||
| Protection Class | Class 2 | |||||
| Finishing Color | WH | |||||
| Material | Steel | |||||
| Cover Style | PS | |||||
| Mounting | Surface Mounted | |||||
| Lifespan/h | >50000h (Ta=30℃ @ L70) | |||||
| Environmental location | Damp location | |||||
| Operation Temp/℃ | -40℃ ～ 50℃(-40℉ ～ 122℉) | |||||
| Storange Temp/℃ | -40℃ ～ 80℃(-40℉ ～ 176℉) | |||||
| Certificate | UL/FCC/ROHS/CE/SAA | |||||
Product features:
1. The base plate use superior cold-rolled steel plate with thickness of 0.8mm.Its surface is covered with electrostatic power,so it won't be rusted in the long term use.
2. The reflective side use V shape+diffuser design,nice and better light efficiency.
3. Use PMMA diffuser, comply with export standard.
4. Advanced technology,lathe techbology and surface oxidation process make the lighting fixture with clear edge and corner,durable and wearable,better heat disspation.
Advantages
1. High end quality CE RoHS certificated, and the quality approved by American and European countries.
2. Longer life time over 50000hrs
3. High efficiency saving the energy.
4. High value with a competitive price, etc.
