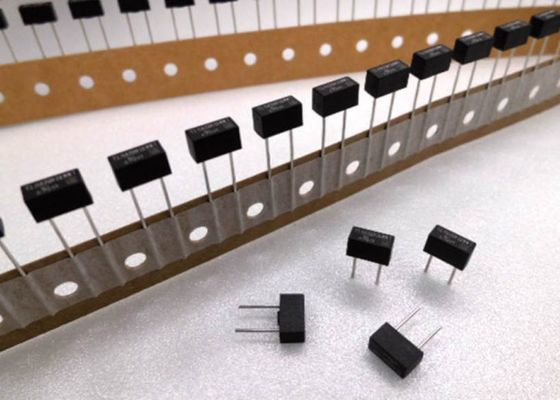

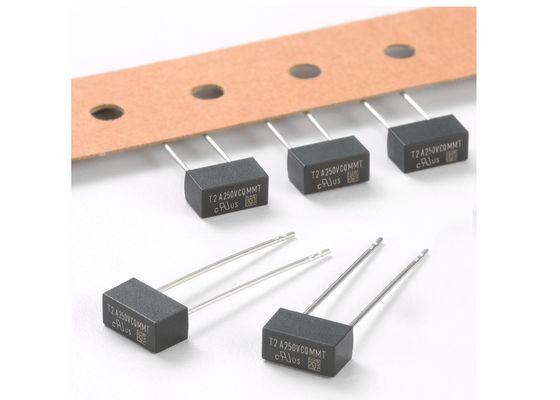

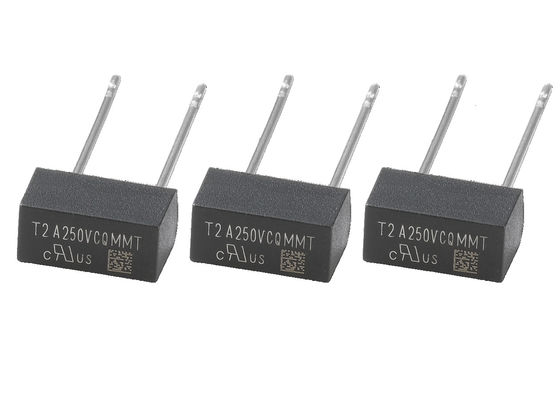

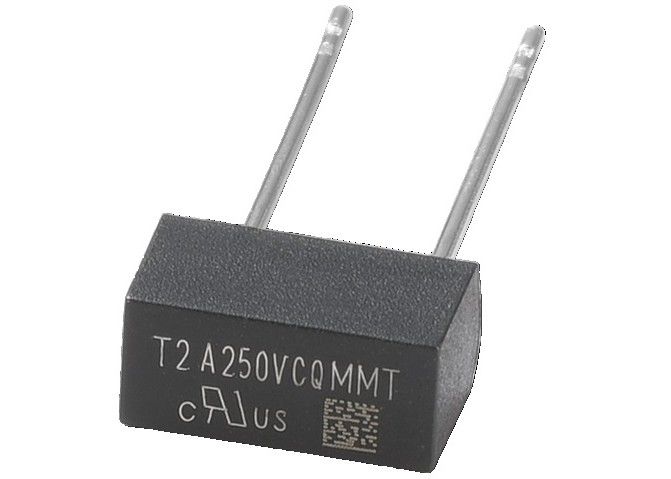

• Plastic 8.35x5x3.95mm 2A Radial Lead Micro Fuse
  • Plastic 8.35x5x3.95mm 2A Radial Lead Micro Fuse
  • Plastic 8.35x5x3.95mm 2A Radial Lead Micro Fuse
  • Plastic 8.35x5x3.95mm 2A Radial Lead Micro Fuse
Plastic 8.35x5x3.95mm 2A Radial Lead Micro Fuse

Plastic 8.35x5x3.95mm 2A Radial Lead Micro Fuse

Product Details:

Certification: TUV CQC KC PSE UL
Model Number: MMT 002

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: Bulk or tape
Delivery Time: 2 Weeks
Payment Terms: T/T
Supply Ability: 10KKPCS Per Month
Get Best Price Contact Now

Detail Information

Type: Micro Fuse Size: 8.35*5.0*3.95mm
Material: Plastic Voltage: 250V/300V/400V
Speed: Time-Lag TUV: 50mA~3.15A
CQC: 50mA~3.15A KC: 50mA~3.15A
PSE: 1A~3.15A UL: 50mA~3.15A
High Light:

2A radial lead micro fuse


TUV radial lead micro fuse


2A Subminiature Fuse

Product Description

Plastic 8.35x5x3.95mm 2A Radial Lead Micro Fuse


Thinnest MMT Series Plastic Box Time Lag Radial Lead Micro Fuse 8.35x5x3.95mm 2A 250V 300V 400V TUV CQC KC PSE UL





MMT is the thinnest fuse series in the world, which presents high interrupting rating and takes out high current inrush. Unique circuit design and high frequency welding technology comprise high qualities of MMT which are approved with UL regulation. The manufacturing process of MMT fuses are regulated with international standard. In global price war of electronic components, we focus on providing top quality fuses. The followings are the competitive advantages of MMT:
1. The thinnest shape
MMT is 8.35x5x3.95 (mm), which is thinnest of the similar type fuses currently. In response to the current thin lighting equipment designed, miniaturized circuit fuse will be making use of electronic products to reduce the volume.
2. Rolling all-inclusive internal circuit structure and high frequency welding technology
MMT internal circuits are rolling all-inclusive structure, which is assembled by high frequency welding technology. High frequency welding technology can partially heat for welding points, in addition to the welding point, no other internal wiring material damage due to heating processes, which makes more stable internal circuit structure to get better anti-pulse characteristics.
3. International quality approval system
Focuses on establishing environment friendly manufacturing processes. Besides, we have approved with international quality approval system as ISO9001, ISO14064, ISO50001, OHSAS18001, and SONY Green Partner.
As one of three major fuse manufactures in the world, we strives to provide top quality fuse. We have developed global agent network which covers Asia, Europe, Americas and Oceania, and we also attend international electronic component exhibitions to promote our sophisticated fuses and make us well-known.

Plastic 8.35x5x3.95mm 2A Radial Lead Micro Fuse 0



Application: Power Supply, Consumer Electronic, Industrial Controller, LED Lighting System, Charger





TUV 50mA~3.15A
CQC 50mA~3.15A
KC (Pending) 50mA~3.15A
PSE 1A~3.15A
Recognized Component for Canada and U.S. 50mA~3.15A



Electrical Characteristic




1.5 ln  2.1 ln 2.75 ln 4 ln 10 ln
50mA~3.15A 60 2 400 10 150 3 20 150
min min ms sec ms sec ms ms





Plastic 8.35x5x3.95mm 2A Radial Lead Micro Fuse 1



Part numbering


Catalog Ampere Ampere Nominal Voltage Nominal
Number Rating Rating Resistance Drop(mv) Melting I²t
  [ In ] ( V ) Cold Ohms MAX A² Sec
MMT .050 50mA




8.9000 550 0.0225
MMT .063 63mA 5.4053 480 0.0446
MMT .080 80mA 3.6870 400 0.0634
MMT .100 100mA 2.4063 350 0.1080
MMT .125 125mA 1.6194 300 0.1223
MMT .160 160mA 1.2458 280 0.2444
MMT .200 200mA 0.8240 260 0.3060
MMT .250 250mA 0.6300 240 0.6019
MMT .315 315mA 0.3800 220 0.8216
MMT .400 400mA 0.2700 200 1.4832
MMT .500 500mA 0.1950 190 2.7000
MMT .630 630mA 0.1322 180 3.1792
MMT .800 800mA 0.0907 160 5.7600
MMT 001 1A 0.0750 140 8.7300
MMT 1.25 1.25A 0.0550 130 9.2800
MMT 1.60 1.6A 0.0425 120 17.700
MMT 002 2A 0.0316 100 36.000
MMT 2.50 2.5A 0.0241 100 39.938
MMT 3.15 3.15A 0.0188 100




Interrupting Rating

35 amperes or 10 x rated current; whichever is greater at 250V AC.
160 amperes at 250V AC (Optional)
130 amperes at 300V AC (Optional)
100 amperes at 250V DC (Optional)



Environmental Specification

Operating Temperature
-55°C to +125°C
MIL-STD-202G, Method 201(10-55 Hz x 3axis/no load)
Salt Spray
MIL-STD-202G, Method 101, Test Condition B (48Hrs)
Insulation Resistance
MIL-STD-202G, Method 302, Test Condition A
(After Opening) 10,000 ohms minimum
Resistance to Solder Heat
MIL-STD-202G, Method 210, Test Condition B (10sec, at 260°C)
Thermal Shock
MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)
100 amperes at 400V AC (Optional)



Physical Specification

Base and Cap: Black thermoplastic, UL 94-V0
Round Pins: Copper, Tin-plated




1. In bulk: 1,000 pcs per box.
2. On Tape: Ammo pack, 1,000 pcs box
