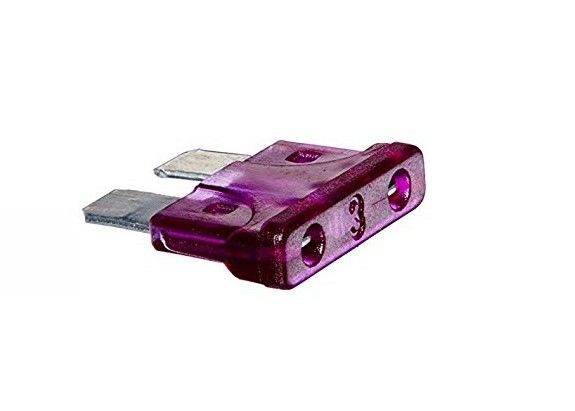

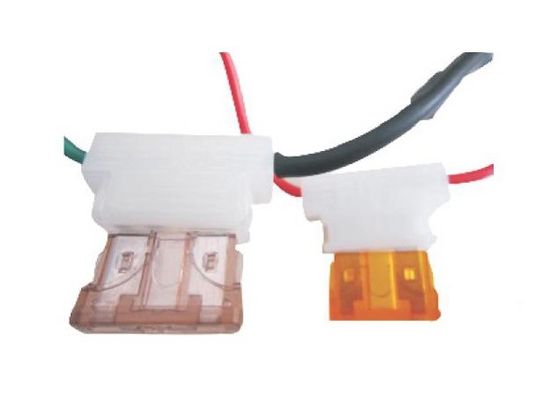

Plastic PA66 Encapsulation Fast Blow Auto Blade Fuse
Product Details:
Certification: | RoHS,UL |
Model Number: | AB19003 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1000 Pieces |
---|---|
Price: | Negotiable |
Packaging Details: | Bulk, 1000pcs per bag |
Delivery Time: | 2 Weeks |
Payment Terms: | T/T,Paypal |
Supply Ability: | 100,000,000 Pieces Per Month |
Detail Information |
|||
Product Name: | 19mm Auto Blade Fuse | Size: | 19x5.2x19.2mm |
---|---|---|---|
Rated Current: | 3A | Voltage Rating: | 32V/58V/60V/80V |
Encapsulation: | Plastic PA66 | Metal: | Zinc Alloy |
Standard: | SAE J1284/ UL 248 | Fuse Type: | Fast-acting |
Highlight: | 3A Auto Blade Fuse,PA66 Auto Blade Fuse,19mm 3 amp mini blade fuse |
Product Description
Plastic PA66 Encapsulation Fast Blow 19x5.2x19.2mm Auto Blade Fuse ATO 32V 58V 60V 80V 3Amp Violte Max Medium Sized
General
Size
Fast Acting, Low Voltage For UP To 32V/60V DC | |
Material | *Body: Plastic. *Metal: Zinc Alloy |
Standard | According To SAE J1284 |
Circuit Protection To Replace Fusible Wire OR Fusible Link. | |
Fuses Are Color-Coded For Easy Amperage Identification. |
Electrical Performances
Part Number | Ampere(A) | Voltage (VDC) |
Body Color |
AB19001 | 1A | 32V/60V | Black |
AB19002 | 2A | 32V/60V | Gray |
AB19003 | 3A | 32V/60V | Violte |
AB19004 | 4A | 32V/60V | Pink |
AB19005 | 5A | 32V/60V | Tan |
AB1907.5 | 7.5A | 32V/60V | Brown |
AB19010 | 10A | 32V/60V | Red |
AB19015 | 15A | 32V/60V | Blue |
AB19020 | 20A | 32V/60V | Green |
AB19025 | 25A | 32V/60V | Natural |
AB19030 | 30A | 32V/60V | Green |
AB19035 | 35A | 32V/60V | bottle green |
AB19040 | 40A | 32V/60V | Orange |
AB19045 | 45A | 32V/60V | Violte |
In | 110%In | 135%In | 200%In | 350%In | 600%In | ||||
20-120A | >100Hours | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
60 s | 3600 s | 2 s | 60 s | 0.2 s | 7 s | 0.04 s | 0.1 s |
Pre-Arcing Time-Limits
FI = 1.43 (max.operating current: 0.7 x Irat at 23°C)
Size groups
Blade Size | Blade Group | Dimensions L × W × H | Common Ratings (Maximum Current) |
Micro2 | APT, ATR | 9.1 × 3.8 × 15.3 mm | 5, 7.5, 10, 15, 20, 25, 30 |
Micro3 | ATL | 14.4 × 4.2 × 18.1 mm | 5, 7.5, 10, 15 |
LP-Mini | APS, ATT | 10.9 × 3.81 × 8.73 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30 |
Mini | APM, ATM | 10.9 × 3.6 × 16.3 mm | 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30 |
Regular |
APR, ATC (Closed), ATO (open), ATS |

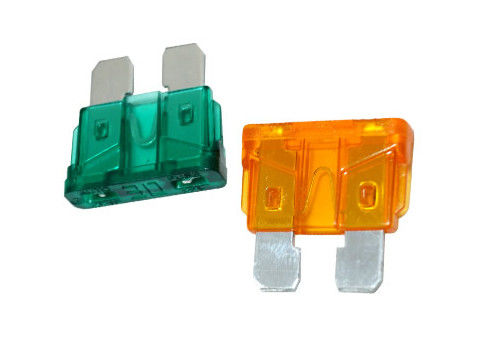

19.1 × 5.1 × 18.5 mm | 0.5, 1, 2, 3, 4, 5, 7.5, 10, 15, 20, 25, 30, 35, 40 |

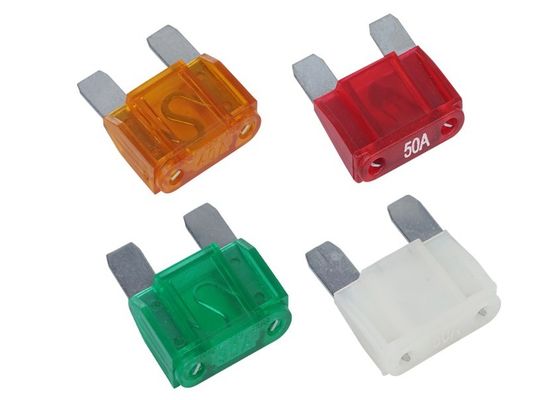

Maxi | APX | 29.2 × 8.5 × 34.3 mm | 20, 25, 30, 35, 40, 50, 60, 70, 80, 100, 120 |
Color coding
Color |
Continuous ampere (=rated current) |
Instantaneous fusing ampere |
Continuous fusing ampere |
Blue | 1.5 | 3.5 | 3 |
Yellow | 2.25 | 5 | 4.5 |
Red on Yellow | 2.5 | 6 | 5 |
Green | 3 | 7 | 6 |
Nut Brown | 4 | 10 | 8 |
Red on Green | 5 | 12 | 10 |
Green on Black | 5 | 12 | 10 |
Red on Brown | 6 | 14 | 12 |
Light Brown | 7.5 | 18 | 15 |
Pink | 12.5 | 30 | 25 |
White | 17.5 | 40 | 35 |
Purple on Yellow | 25 | 60 | 50 |
Yellow on Red | 30 | 75 | 60 |
