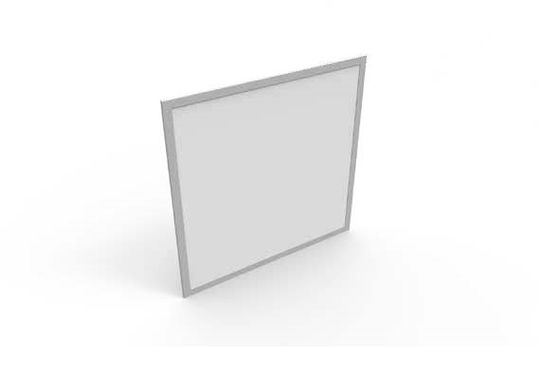

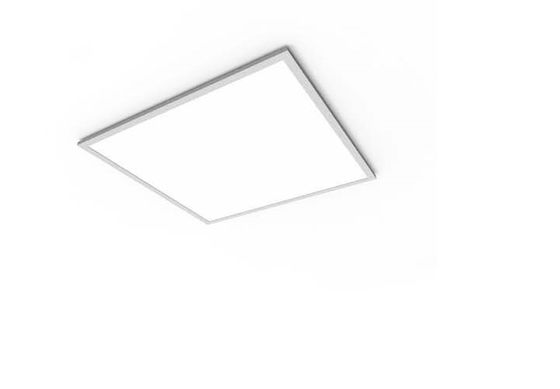

Steel P1 1X4 30W 3200LM Drop Ceiling LED Light Panels
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | HK |
| Certification: | ETL,FCC,CE,ROHS |
| Model Number: | HKBLP130W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Negotiate |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,0000 pcs / Month |
|
Detail Information |
|||
| Mounting: | Surface Mounted | LED Qty: | 2835 LED Chip |
|---|---|---|---|
| Style: | LED Panel Light | Rated Input Voltage/V: | AC100-277V |
| HZ: | 60HZ | Light Source: | LED |
| SDCM: | ＜5 | UGR: | Microprismatic ( LOW UGR) |
| Highlight: | 3200LM suspended LED ceiling lights,1X4 drop ceiling led light panels,3200LM drop ceiling led light panels |
||
Product Description
Steel P1 1X4 30W LED Panel Light Larger Luminous Area
Quality and service:
1, Stable quality with high-end exterior
2, Competitive prices and extra discount for agents
3, Accept customization for clients
4, Quick,considerate and professional response
5, Quick delivery time
6, Human-based after-sales service and warranty
7, Full tests and varities of certificates for different markets
8, Customize packing,carton print and sticker for clients' brand
| Model No | HKBLP130W | HKBLP140W | HKBLP430W | HKBLP440W | HKBLP740W | HKBLP750W |
| Power/W | 30W | 40W | 30W | 40W | 40W | 50W |
| Lumen output/LM | 3200LM | 4200LM | 3200LM | 4200LM | 4200LM | 5300LM |
| Size | 1X4 | 1X4 | 2X2 | 2X2 | 2X4 | 2X4 |
| Style | LED panel light | |||||
| Rated Input Voltage/V | AC100-277V | |||||
| HZ | 60HZ | |||||
| Light Source | LED | |||||
| SDCM | ＜5 | |||||
| LED Qty | 2835 LED chip | |||||
| CCT/K | 2700-5700K or CCT adjustable | |||||
| Ra | ＞80 | |||||
| PF | ＞0.95 | |||||
| THD | ＜20% | |||||
| Beam Angle | Rotatable light source | |||||
| UGR | Microprismatic ( LOW UGR) | |||||
| Surge Protection | 3000V | |||||
| LED Driver | SS | |||||
| IP Rating | IP65 | |||||
| Dimming | 0-10V | |||||
| Sensor | Optional | |||||
| Emergency | Optional | |||||
| Protection Class | Class 2 | |||||
| Finishing Color | WH | |||||
| Material | Steel | |||||
| Cover Style | PS | |||||
| Mounting | Surface Mounted | |||||
| Lifespan/h | >50000h (Ta=30℃ @ L70) | |||||
| Environmental location | Damp location | |||||
| Operation Temp/℃ | -40℃ ～ 50℃(-40℉ ～ 122℉) | |||||
| Storange Temp/℃ | -40℃ ～ 80℃(-40℉ ～ 176℉) | |||||
| Certificate | UL/FCC/ROHS/CE/SAA | |||||
Supports:
To help clients expand their markets,OED service is available.
WISCOON offers business policies to support all regular and new clients,please contact for our detailed supports.....
Advantages
1. High end quality CE RoHS certificated, and the quality approved by American and European countries.
2. Longer life time over 50000hrs
3. High efficiency saving the energy.
4. High value with a competitive price, etc.
