Product Details:

Place of Origin: CHINA
Model Number: FLF-S 50

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 2 Weeks
Payment Terms: T/T
Supply Ability: 10,000,000 Pieces Per Month
Get Best Price Contact Now

Detail Information

Product Name: Car Fuse Temp Range: -40℃~+125℃
Rated Voltage: DC32V Or Less Blown Features: Time Delay
Interrupting Rating: 1000A @32VDC Terminal Type: Female
High Light:

32V square automotive fuse

,

50A square automotive fuse

,

32V square car fuse

Product Description

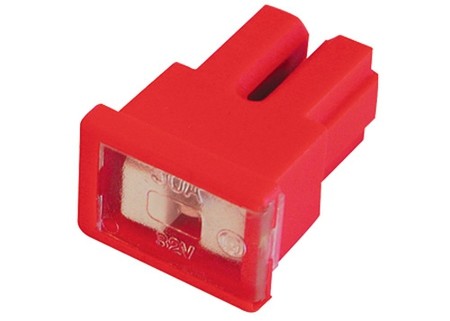

Molded Plastic Housing 50A 32V Square Automotive Fuse


Color-coded Molded Plastic Housing Square Shape Time Delay Car Fuse Link 50Amp 32V Red For Nissan Automotive


Feature

Time-delay
Used primarily in Japanese-designed vehicles for wiring harness protection
Color-coded molded plastic housing allows quick identification of amp rating
50 Amp (Red), 32 Vdc
Includes convenient viewing window for verifying link status
Complies with JASO D612,ISO 8820-4,QC/T 420
Wide current range 20A-100A
Excellent breaking capacity 1000A@32V
Female terminated fusible link
Replaces commonly used fusible wire
32V AC/DC Voltage Rating

Molded Plastic Housing 50A 32V Square Automotive Fuse 0


Part Numbering


Part No. Ampere Color
FLF-S 20 20 A

Molded Plastic Housing 50A 32V Square Automotive Fuse 1

FLF-S 30 30 A
FLF-S 40 40 A
FLF-S 50 50 A
FLF-S 60 60 A
FLF-S 70 70A
FLF-S 80 80A
FLF-S 100 100A



Size (mm)

Molded Plastic Housing 50A 32V Square Automotive Fuse 2


Time-current Table


Test Current Opening Time
Min. Max.
110% 4 hrs. ---
150% 30 s 3600 s
200% 5 s 100 s
350% 0.2 s 7 s
600% 0.04 s 1 s



Material used :

1. Brass
2. Nylon With Glass Fiber / PC
3. Ceramic


Description

The FLF-S series cartridge fuse is a mini female cartridge fuse and is perfect for space savings on newer automotive applications. FLF-S series cartridge fuses help reduce typical replacement wear on automotive or marine fuse boxes.Commonly found on many Japanese and Domestic built vehicles in current ratings up to 120 amperes. Available with female connector, male connector, bent connector and locking female connector. Color coded to indicate amp rating.

1. PAL™ Female terminal
2. PAL™ Straight Male Terminal
3. PAL™ 13/16" Bent Male Terminal
4. PAL™ Mini Female Terminal -- this appears to match the one you pictured earlier between your fingers
5. PAL™ 9/16" Bent Male Terminal
6. PAL™ Locking Female Terminal
Molded Plastic Housing 50A 32V Square Automotive Fuse 3


Fusiable Links Retail Package

1. Transparent Box 330010

10PCS Per Transparent box ; 1000PCS per Carton Box
Molded Plastic Housing 50A 32V Square Automotive Fuse 4


2. Color Box 310050

50PCS/Color box ; 1000PCS/Carton Box

Note :100PCS/Color box,2,000PCS/CARTON For FLF-M,FLF-E
