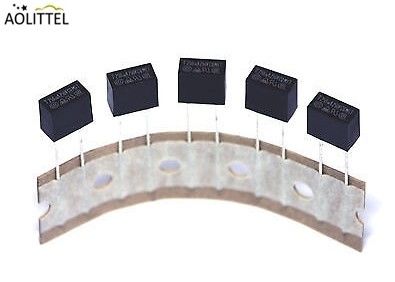

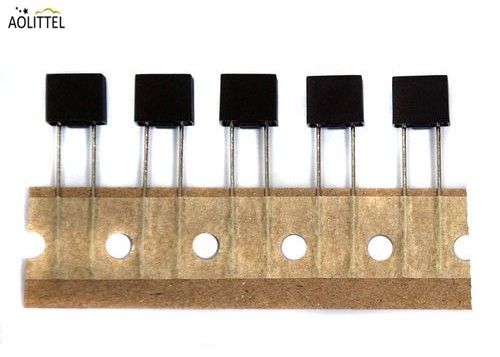

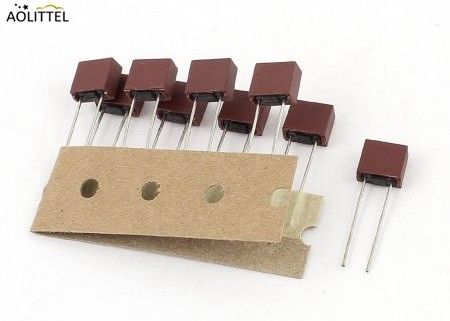

• Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL
  • Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL
  • Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL
  • Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL
Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL

Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL

Product Details:

Place of Origin: CHINA
Brand Name: AO LITTEL
Certification: UL,CUL,VDE,CQC,PSE,KTL
Model Number: FMS1200A

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Pieces
Price: USD 0.03 to 0.06 Per Piece
Packaging Details: A: Taping package 1000 pcs per box B: Bulk 1000 pcs / poly bag / 5 poly bags / box, altogether 5000 pcs
Delivery Time: 5-7 Workdays
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 20,000,000 Pieces Per Day
Get Best Price Contact Now

Detail Information

Item: Micro Subminiature Fuse FMS1200A Rated Current: 2 Ampere (50mA~6.3A )
Voltage Ratings: 350V Material: Plastic
Characteristic: F Pig-Tail: Yes
Max Voltage Drop: 170mV I2TMelting Integral(A2. S): 25.9
Color: Black(Red Could Be Available) Unit Weight: 0.35419 G
Cold Resistance: 0.033 Ohms Packaging: Tape Or Bulk
High Light:

micro mini fuse

,

mini cartridge fuse

Product Description

Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL


Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL


Application Filed

• Battery Chargers
• Consumer Electronics
• Power Supplies
• Industrial Controllers
• Flat-panel display TV
• LCD monitor
• LCD back light inverter
• Office machines
• Audio/Video system
• Lighting system
• Medical equipment


______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________



Features

8.4*7.2 mm Micro fuse
Small volume
Rating Current : FMS 50mA~10A
Rating Voltage : 250V / 277V / 300 / 350Vac
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock
High reliability and stable solderability.
Operating temperature range: -55 to +125C


Average Time Current Curves : FMS

Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL 1


Electrical Characteristic

Rated Current Blowing Time
210% 30 min Max.
275% 10 mSec ~ 3 mSec
1000% 20 mSec Max.




Mechanical Dimensions

Unit: mm

Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL 2



Material information


NO. Part Name Material
1 Cap Black or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0
2 Base Black or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0
3 Fuse element Alloy
Lead wire Copper, Tin-plated



Part Numbering


Part.
No.

Ampere
Rating


Voltage
Rating

Max Voltage
Drop (mv)

I2TMelting
Integral(A2.S)

Agency Approvals

Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL 3 UL


 VDE


 CQC


 PSE

JTK
KTL

FMS0050A

50mA

350V

555

0.02

FMS0100A

100mA

350V

355

0.11

FMS0125A

125mA

350V

323

0.12

FMS0160A

160mA

350V

296

0.17

FMS0200A

200mA

350V

272

0.21

FMS0250A

250mA

350V

251

0.41

FMS0315A

315mA

350V

237

0.63

FMS0400A

400mA

350V

211

1.22

FMS0500A

500mA

350V

202

2.34

FMS0630A

630mA

350V

191

2.88

FMS0800A

800mA

350V

172

3.92

FMS1100A

1A

350V

200

5.77

FMS1125A

1.25A

350V

200

8.34

FMS1160A

1.6A

350V

190

13.60

FMS1200A

2A

350V

170

25.90

FMS1250A

2.5A

350V

170

42

FMS1300A

3A

350V

165

45

FMS1315A

3.15A

350V

150

64

FMS1400A

4A

350V

130

92

FMS1500A

5A

350V

130

140

FMS1630A

6.3A

350V

130

208

FMS1800A

8A

350V

100

265

FMS2100A

10A

350V

100

295



Installation Recommendations

a. Propose installation way as following picture.


Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL 4

b. Recommended Soldering Parameters

    1) Wave Parameters:
          Solder Pot Temperature: 260℃ Max
          Solder Dwell Time: 2~5s

      2) Hand-Solder Parameters:
               Solder Iron Temperature: 350±5℃
                Heating Time: 1~2 s Max

Product Photo

Fast Acting Radial Lead Micro Subminiature Fuse FMS1200A 2A With UL VDE CQC PSE KTL 5
