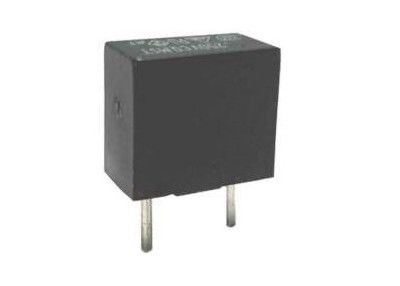

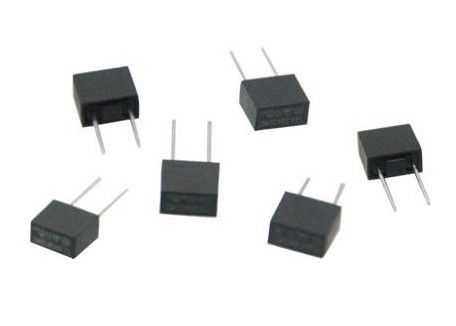

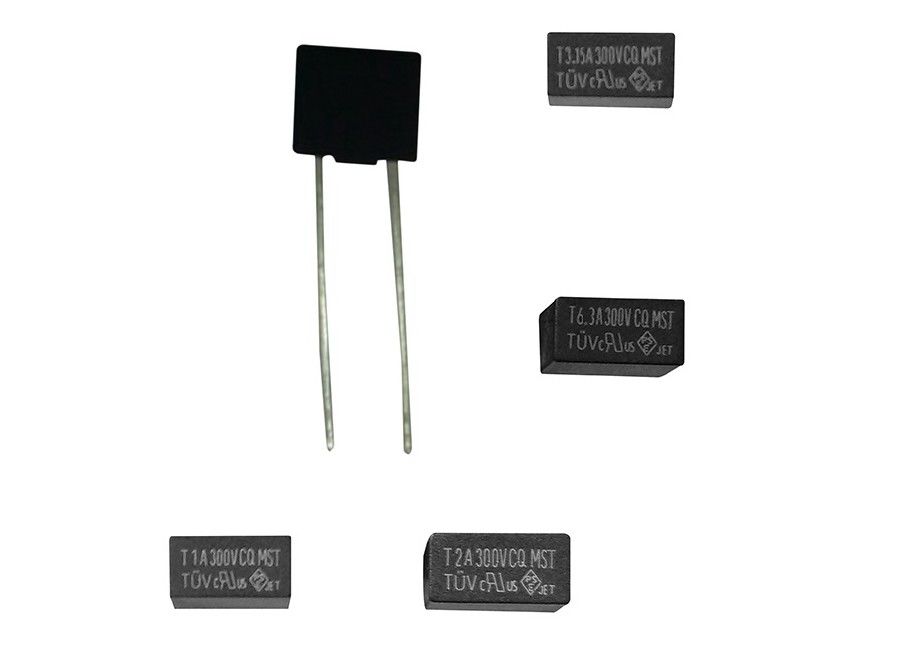

CCC CQC PSE PCB Radial Leaded Box Shaped Slow Blow Miniature Fuse MST 002 2A 250VAC 300V 400V 8.35x7.7mm
Product Details:
Certification: | SEMKO VDE TUV CSA UL PSE CCC CQC KTL |
Model Number: | MST 002 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1000PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Tape or Bulk |
Delivery Time: | 10 Workdays |
Payment Terms: | T/T,Paypal |
Supply Ability: | 5KKPCS Per Month |
Detail Information |
|||
Name: | Miniature Fuse | Voltage: | 250VAC(300VAC/400VAC) |
---|---|---|---|
Characteristic: | Time Delay | Material: | Plastic |
Current: | 2A (40mA~10A ) | Size: | 8.35mmx7.7mmx4.3mm |
High Light: | micro mini fuse,mini cartridge fuse |
Product Description
CCC CQC PSE PCB Radial Leaded Box Shaped Slow Blow Miniature Fuse MST 002 2A 250VAC 300V 400V 8.35x7.7mm
CCC CQC PSE PCB Radial Leaded Box Shaped Slow Blow Miniature Fuse MST 002 2A 250VAC 300V 400V 8.35x7.7mm
Features
Ø 8.35*7.7 mm Micro fuse
Small volume,
Rating Current : MST 40mA~10A ;
Rating Voltage : 250V / 277V / 300Vac
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock
High reliability and stable solderability.
Operating temperature range: -55°C to +125°C
Approval
VDE 40mA~6.3A
TUV 8A/10A
CSA Acceptance 40mA~6.3A
UL Recognized 40mA~6.3A
PSE 1A~10A
SEMKO 40mA~4A
CCC 40mA~6.3A
KTL 40mA~6.3A
CQC 8A/10A
Recognized Component for Canada and U.S. 500mA~10A
PSE 1A~10A
TUV 500mA~10A
CQC 500mA~10A
Recognized Component for Canada and U.S. 40mA~10A
PSE 1A~10A
TUV 40mA~10A
Specification
Product Type | (A) | (V) | cold resistance | maximum voltage drop | I²T value | Breaking capacity | Weight(single product) |
MST .040 | 40 mA | 250V | 12.864 | 600 | 0.0158 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .050 | 50 mA | 250V | 8.9 | 550 | 0.0225 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .063 | 63 mA | 250V | 5.4053 | 480 | 0.0446 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .080 | 80 mA | 250V | 3.687 | 400 | 0.076 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .100 | 100 mA | 250V | 2.4063 | 350 | 0.108 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .125 | 125 mA | 250V | 1.6194 | 300 | 0.1223 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .160 | 160 mA | 250V | 1.2458 | 280 | 0.17 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .200 | 200 mA | 250V | 0.824 | 260 | 0.306 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .250 | 250 mA | 250V | 0.63 | 240 | 0.6019 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .315 | 315 mA | 250V | 0.38 | 220 | 0.8216 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .400 | 400 mA | 250V | 0.27 | 200 | 1.4832 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .500 | 500 mA | 250V | 0.195 | 190 | 2.7 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .630 | 630 mA | 250V | 0.1322 | 180 | 3.1792 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST .800 | 800 mA | 250V | 0.0907 | 160 | 5.76 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST 0.630 | 6.3 A | 250V | 0.0074 | 100 | 310.77 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST 001 | 1 A | 250V | 0.075 | 140 | 8.73 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST 002 | 2 A | 250V | 0.0316 | 100 | 36 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST 004 | 4 A | 250V | 0.0136 | 100 | 158.4 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST 005 | 5 A | 250V | 0.01 | 100 | 202.5 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST 008 | 8 A | 250V | 0.0057 | 100 | 368.64 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST 010 | 10 A | 250V | 0.0034 | 100 | 288 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST 1.25 | 1.25 A | 250V | 0.055 | 130 | 14.766 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST 1.60 | 1.6 A | 250V | 0.0425 | 120 | 23.04 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST 2.50 | 2.5 A | 250V | 0.0241 | 100 | 56.25 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST 3.15 | 3.15 A | 250V | 0.0188 | 100 | 93.768 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
MST 6.30 | 6.3 A | 250V | 0.0074 | 100 | 310.77 | 35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC | 0.36993 |
* 300V/400V optional
Electrical Characteristic
Rated current | 1.5In | 2.1In | 2.75 In | 4 In | 10 In | |||
MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | |
40mA~5A | 60 min | 2 min | 400 ms | 10 sec | 150 ms | 3 sec | 20 ms | 150 ms |
6.3 A~10A | 60 min | 2 min | 400 ms | 10 sec | 150 ms | 3 sec | 15 ms | 150 ms |
Environmental Temperature at 25°C
Interrupting Rating
35 amperes or 10 x rated current ; whichever is greater at 250V AC.
130 amperes at 250V AC.(optional)
50 amperes at 300V AC.(optional)
Material
Base and Cap: Black thermoplastic, UL 94-V0
Round Pins: Copper, Tin-plated
Dimension

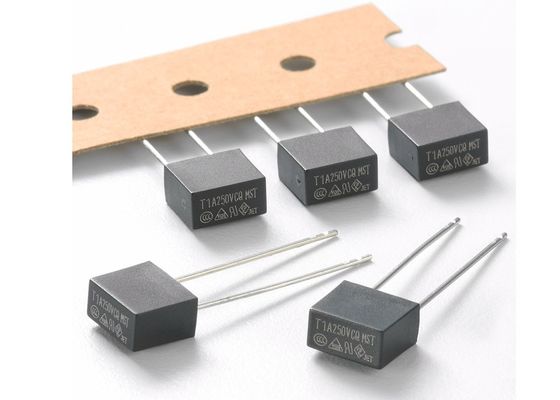

Tape & Reel Quantity
1. In bulk: 1,000 pcs per box.
2. On Tap: Ammo pack, 1,000 pcs box
* The curves are average value, for reference only *
