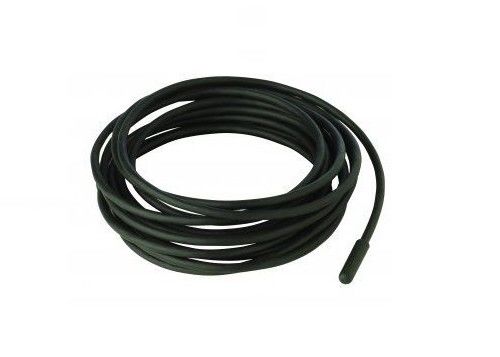

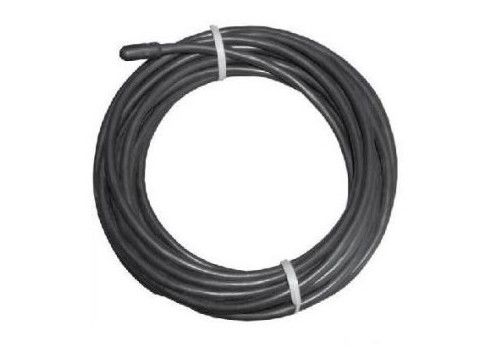

5x17mm Micro Temperature Sensor , 15KOhm Probe Type Temperature Sensor

5x17mm Micro Temperature Sensor , 15KOhm Probe Type Temperature Sensor

Product Details:

Brand Name: Aolittel
Model Number: CWFM0153FB1 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 2~4 Weeks
Payment Terms: T/T
Supply Ability: 1,000,000 Pieces Per Month
Get Best Price Contact Now

Detail Information

Name: Floor Micro Temperature Sensor Probe Resistance At 25ºC: 15KOhm±1%
Probe: PVC Overmolded Cap Probe Diameter: Φ5.3
Probe Length: 17mm B25/50: 3470K±1%
Color: Black Dissipation Factor: 2mW/C
Response Time: 15 Sec Withstanding Voltage: 1500VAC 2Sec
Operating Temp. Range: -30~+105C Cable: To Be Advised
High Light:

15KOhm probe type temperature sensor

,

17mm probe type temperature sensor

,

15KOhm Micro Temperature Sensor

Product Description

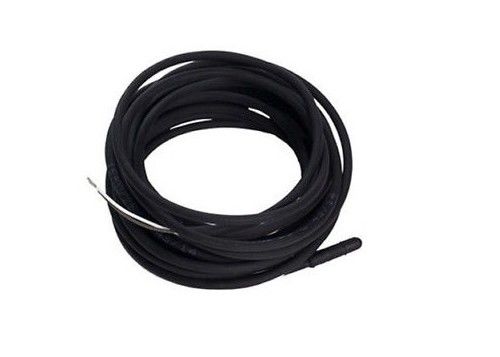

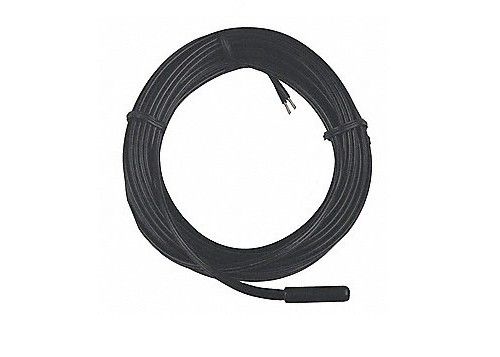

5x17mm Micro Temperature Sensor , 15KOhm Probe Type Temperature Sensor



Electric Underfloor Heating Floor Micro Temperature Sensor Probe 5x17mm 15KOhm 3470 With IP68 Rated Waterproof





Dimension (Unit:mm)



5x17mm Micro Temperature Sensor , 15KOhm Probe Type Temperature Sensor 0

Dimension
A B C D L
5 17 25±5 3±1 as required




Material List



NO Material Name Material and Specifications
2-1. Element R25=15KΩ±1% B25/50=3470K±1% DC
2-2. Coating NTC encapsulated using PVC over-mold material (Black)
2-3 Cable features Customization 2464-22#*2C Black hard round sheath wire (OD3.3)
2-4. Wire ends

Tinned





Important Note



This sensor has a resistance of 15,000 Ohms at 25ºC. Therefore it is not compatible with certain brands of underfloor heating thermostats such as Devi which have a resistance reading of 10k Ohms at 25°C. Please contact us if you are unsure or have any questions regarding this sensor.We have both type : 10k Ohms at 25°C and 15,000 Ohms at 25ºC.



______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________





Description



All Comfort Heat thermostats include a floor sensor maintaining consistent floor temperature. Floor sensing thermostats are the safest and most energy efficient floor heating regulators ensuring the floor does not overheated, and kept at the desired temperature.

Replacement floor temperature sensor suitable for a wide range of underfloor heating thermostats.

An electric underfloor heating remote probe used to control floor or air temperature where moisture might be a problem (For example in a wet room or bathroom.) The sensor can also be used to control floor temperature where overheating would cause damage. The underfloor heating probe is compatible with all of our electric floor heating thermostats.

The remote probe sensor is supplied with 3 meters of cable as standard but can be extended up to a maximum of 20 meters if required. The ability to extend the underfloor heating probe provides a highly flexible solutions should you wish to install the underfloor heating thermostat in a remote location. The probe is covered in a flexible PPC coating ensuring a durable and waterproof finish.




Electrical Performances

NO Item Sign Test Conditions Min. Nor. Max. Unit
1. Resistance at 25℃ R25

Ta=25±0.05℃

PT≦0.1mw

14.85 15.0 15.15
2. B Value B25/50   3435.3 3470 3504.7 k
3. Dissipation factor σ In still air About 2 mW/℃
4. Time response τ In flowing water About 15 sec
5. Withstanding Voltage / 1500VAC 2Sec No breakdown Sec
6. Insulation Resistance   500VDC ≧100
7. Operating temp. range / / -30 / +105




Features



Works with a wide range of different thermostats
Please check the resistance values of your current sensor against the table below for compatibility
Cable has high rigidity, allowing it to be easily passed through existing flexible conduit
Suitable for use in wet areas. IP68 Rated (When installed according to manufacturers instructions)
Rubber thermoplastic protective housing for NTC sensor
Sensor dimensions; 17mm x 5mm

Works with a wide range of different thermostats. Please check the resistance values of your current sensor against the table (Shown on pictures.)
Cable length can be customized(Extendable upto 20 meters)
Suitable for use in wet areas - IP68 (When installed according to manufacturers instructions)
No polarity, simply connect the two wires either way round to the sensor outlet on the thermostat.

Electric Underfloor Heating Remote Probe Floor Sensor

Used as Air or Floor Sensor

Waterproof

5mm Probe Diameter





Installation Recommendations

:
When installing the EcoHeatCool underfloor heating remote probe into any form of screed or solid floor construction we recommend you run the thermostat into a sleeve (tube) within the floor should the thermostat need to be replaced at a later date.


To extend the underfloor heating probe use an equivalent gauge electrical cable ( Note: The maximum distance from the thermostat should be no more than 20 meters.)



Mark the position of the conduit on the floor. Remove the surrounding heatmat(s) and cut a channel 12mm wide x 8mm deep in the floor to accommodate the conduit. This will maintain the overall finished floor level. Ensure that the floor is clean before installation of heatmat(s)





SENSOR LOCATION



The sensor end should be located in the floor between the heating cables/pipes so it measures the typical floor temperature. The sensor tube should not pass over or under the heating cable.





SENSOR TUBE



All Comfort Heat sensors installed in-slab, in-screed or thin mats are installed in a sensor tube. (12mm plastic tube with capped end) This allows the sensor to be removed if required, without lifting floor tiles.

Under-carpet and under timber systems do not require a sensor tube.



Sensor Testing


Using a multi-meter, measure the resistance between the two connection wires in the floor temperature sensor flex, and check against the Thermostat Kit Installation / Operation Guide supplied with the thermostat. Check the resistance before and after installation.



Where do the RCD/Timer/Thermostat go on the circuit ?

The mat is laid and the cold leads are fed into a junction box. It doesn't matter where you physically fix these items, though you may want them to be hidden in a cupboard. If you have a thermostat that reads air temperature, this will need to be in the appropriate room. However, if it is fitted with a floor sensor then this isn't necessary.


Wiring Diagram Example:’
5x17mm Micro Temperature Sensor , 15KOhm Probe Type Temperature Sensor 2





HOW DOES THE FLOOR SENSOR DETECT THE TEMPERATURE FOR ELECTRIC UNDERFLOOR HEATING?



The most efficient way of running and controlling Electric Underfloor Heating is by using a controller that has a floor sensor attached that is located in the floor in between the heating cables. The floor sensor should be located inside a hollow conduit pipe that runs down the back of the wall and into the floor construction, this means the sensor can be protected from the screed or adhesive so no damage is caused but also can easily be pulled out and new one fed back if necessary at a later date.

The sensor cable is signal/bell wire and has a probe at the end of the sensor that detects the temperature. By being located next top the heating cable the temperature is more reactive and less influenced by the changes in Ambient temperature meaning the system will constantly adjust itself without the need for being on for extended periods of time.

Although the controller on the wall can be switched to read the Ambient temperature, it is not Touch Underfloor Heatings preferred option as it can be easily influenced by draughts, sunlight, high temperatures etc meaning your Underfloor Heating system will either run constantly or not at all. Tocuh Underfloor Heating provised the 10mm conduit pipe as part of the Kit.

More thermostat help can be found here.





Reliability Test



NO Item Technical requirements Test conditions and method
1. Dry heat storage

△R25: R25≤±3%

△B25/85: B25/85≤±2%

80±2℃,Room temperature storage 1000H.
2. Warm storage 55±2℃,95% RH, Room temperature storage 1000H.
3. Low temperature storage -30±2℃, Room temperature storage 1000H.
4. Temp. cycle test -20℃×30min → 25℃×10min →100℃ Water×30min → 25℃×10min, total 10 cycles
5 Lead wire pulling test No visible damage, and are within specification Fix the product and apply 9.8Nor 1.0kg force on axial direction of each lead wire, for 10 secs.
6 Lead wire bending test Fix the product and apply 100g force on axial direction of each lead wire, then bend both lead wires to same direction slowly, before bending them back to original location, for 10 times
7 Welding ability Tin covered area should be larger than 90% Soak lead wires with flux, immerse into flux at 230-260, for 3 to 5 secs.





Resistance Vs. Temperature Table



R-T CONVERSION TABLE
R25=15KΩ±1% B25/50=3470K±1%
T/℃ Rmin Rcen Rmax T/℃ Rmin Rcen Rmax
-55 765.738 804.9 845.979 -20 106.488 109.725 113.05
-54 712.99 748.914 786.569 -19 101.264 104.29 107.395
-53 665.938 699.009 733.648 -18 96.329 99.157 102.058
-52 623.575 654.108 686.067 -17 91.665 94.309 97.02
-51 585.122 613.377 642.932 -16 87.257 89.729 92.262
-50 549.967 576.164 603.548 -15 83.089 85.401 87.768
-49 517.631 541.956 567.367 -14 79.146 81.309 83.522
-48 487.733 510.346 533.954 -13 75.416 77.439 79.508
-47 459.969 481.01 502.963 -12 71.886 73.778 75.713
-46 434.092 453.684 474.113 -11 68.544 70.314 72.123
-45 409.905 428.157 447.177 -10 65.378 67.035 68.726
-44 387.243 404.254 421.969 -9 62.379 63.929 65.511
-43 365.97 381.829 398.334 -8 59.536 60.987 62.467
-42 345.973 360.76 376.141 -7 56.841 58.199 59.583
-41 327.154 340.943 355.279 -6 54.284 55.555 56.85
-40 309.428 322.29 335.652 -5 51.859 53.048 54.26
-39 292.723 304.719 317.175 -4 49.556 50.67 51.804
-38 276.973 288.163 299.774 -3 47.371 48.413 49.473
-37 262.119 272.557 283.382 -2 45.294 46.27 47.262
-36 248.108 257.845 267.937 -1 43.321 44.235 45.163
-35 234.891 243.974 253.383 0 41.314 42.165 43.029
-34 222.422 230.896 239.668 1 39.663 40.463 41.276
-33 210.659 218.565 226.744 2 37.967 38.716 39.476
-32 199.562 206.938 214.565 3 36.354 37.055 37.765
-31 189.093 195.975 203.088 4 34.818 35.474 36.138
-30 179.217 185.64 192.273 5 33.356 33.969 34.591
-29 169.901 175.894 182.081 6 31.963 32.537 33.118
-28 161.112 166.706 172.477 7 30.637 31.174 31.716
-27 152.821 158.043 163.427 8 29.373 29.874 30.382
-26 144.998 149.873 154.897 9 28.168 28.637 29.111
-25 137.618 142.17 146.857 10 27.019 27.457 27.9
-24 130.653 134.904 139.279 11 25.923 26.332 26.746
-23 124.08 128.05 132.134 12 24.877 25.26 25.646
-22 117.876 121.584 125.397 13 23.879 24.237 24.597
-21 112.019 115.483 119.043 14 22.927 23.26 23.596

R-T CONVERSION TABLE
R25=15KΩ±1% B25/50=3470K±1%
T/℃ Rmin Rcen Rmax T/℃ Rmin Rcen Rmax
15 22.017 22.329 22.642 52 5.589 5.7 5.813
16 21.149 21.439 21.731 53 5.404 5.513 5.624
17 20.319 20.59 20.861 54 5.226 5.334 5.443
18 19.526 19.778 20.031 55 5.055 5.161 5.268
19 18.769 19.003 19.239 56 4.89 4.994 5.1
20 18.044 18.263 18.482 57 4.732 4.834 4.938
21 17.352 17.555 17.758 58 4.579 4.68 4.782
22 16.689 16.878 17.067 59 4.432 4.531 4.631
23 16.056 16.231 16.406 60 4.291 4.388 4.486
24 15.449 15.612 15.774 61 4.154 4.249 4.346
25 14.85 15 15.15 62 4.023 4.116 4.212
26 14.303 14.453 14.602 63 3.896 3.988 4.082
27 13.761 13.91 14.06 64 3.774 3.864 3.956
28 13.242 13.391 13.54 65 3.656 3.745 3.835
29 12.745 12.894 13.042 66 3.543 3.63 3.718
30 12.27 12.417 12.565 67 3.433 3.519 3.606
31 11.815 11.961 12.108 68 3.328 3.412 3.497
32 11.379 11.524 11.67 69 3.226 3.308 3.392
33 10.961 11.105 11.25 70 3.128 3.208 3.291
34 10.561 10.704 10.847 71 3.033 3.112 3.193
35 10.178 10.319 10.461 72 2.941 3.019 3.098
36 9.81 9.95 10.091 73 2.853 2.929 3.007
37 9.457 9.596 9.735 74 2.767 2.842 2.919
38 9.119 9.256 9.394 75 2.685 2.759 2.834
39 8.795 8.93 9.066 76 2.605 2.678 2.751
40 8.484 8.618 8.752 77 2.529 2.599 2.672
41 8.186 8.317 8.45 78 2.454 2.524 2.595
42 7.899 8.029 8.16 79 2.383 2.451 2.52
43 7.624 7.752 7.882 80 2.313 2.38 2.448
44 7.36 7.486 7.614 81 2.246 2.312 2.379
45 7.107 7.231 7.357 82 2.181 2.246 2.312
46 6.863 6.986 7.11 83 2.119 2.182 2.247
47 6.629 6.75 6.872 84 2.058 2.12 2.184
48 6.404 6.523 6.643 85 2 2.061 2.123
49 6.188 6.305 6.424 86 1.943 2.003 2.064
50 5.98 6.096 6.212 87 1.888 1.947 2.007
51 5.781 5.894 6.009 88 1.836 1.893 1.952
R-T CONVERSION TABLE
R25=15KΩ±1% B25/50=3470K±1%
T/℃ Rmin Rcen Rmax T/℃ Rmin Rcen Rmax
88 1.836 1.893 1.952 111 0.997 1.035 1.073
89 1.784 1.841 1.898 112 0.973 1.01 1.048
90 1.735 1.79 1.847 113 0.95 0.986 1.024
91 1.687 1.741 1.797 114 0.928 0.963 1
92 1.641 1.694 1.748 115 0.906 0.941 0.977
93 1.596 1.648 1.702 116 0.885 0.919 0.955
94 1.552 1.604 1.656 117 0.865 0.899 0.934
95 1.511 1.561 1.612 118 0.845 0.879 0.913
96 1.47 1.519 1.57 119 0.827 0.859 0.893
97 1.431 1.479 1.529 120 0.808 0.84 0.874
98 1.393 1.44 1.489 121 0.791 0.822 0.855
99 1.356 1.402 1.45 122 0.774 0.805 0.837
100 1.32 1.366 1.413 123 0.757 0.788 0.819
101 1.286 1.331 1.377 124 0.741 0.771 0.802
102 1.253 1.297 1.342 125 0.726 0.756 0.786
103 1.22 1.264 1.308
104 1.189 1.232 1.275
105 1.159 1.201 1.244
106 1.13 1.171 1.213
107 1.101 1.142 1.183
108 1.074 1.114 1.154
109 1.048 1.086 1.126
110 1.022 1.06 1.099






Ordering Information



Part Number Description @25 MOQ
CWFM0153FB1-202M113X PVC Overmolded Cap Φ5.3*17mm Length 2 meterS 15K Ω 1000
CWFM0153FB1-322M113X PVC Overmolded Cap Φ5.3*17mm Length 3.2 meterS 15K Ω 1000
CWFM0153FB1-502M113X PVC Overmolded Cap Φ5.3*17mm Length 5 meterS 15K Ω 1000



* For quantities less than Minimum Order Quantity - contact us.
