Product Details:

Brand Name: AOLITTEL
Model Number: ALT104F3950FB300AJ

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Pieces
Price: 0.8 ~ 1.2 US Dollar Per Pieces
Packaging Details: Bulk
Delivery Time: 7-10 Days
Payment Terms: T/T, Western Union
Supply Ability: 10,000,000 Pieces Per Month
Get Best Price Contact Now

Detail Information

Type: NTC Temperature Sensor Resistance @ 25C: 100KΩ±1%
B25/50: 3950K±1% Connector: 2P White
Cable: UL1332 26AWG2C TS Black Cable Length: 300mm (Customized)
Housing: 304 Stainless Steel Ring: Copper
Temp Range: -30~180C Response Time: 5 Sec
High Light:

300mm Micro Temperature Sensor

,

100KOhm Micro Temperature Sensor

,

300mm ntc type temperature sensor

Product Description

300mm Micro Temperature Sensor , 100KOhm NTC Type Temperature Sensor

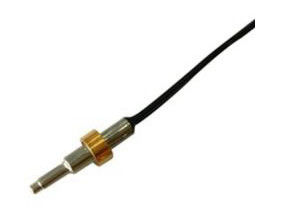

Stainless Steel Housing Brass Ring Thermistor NTC Temperature Sensor 100KOhm 3950 For Water Heater And Coffee Maker





Applications



Vehicle coolant sensor
Electric water heater
Small appliance controls such as boilers, coffee makers, etc.



________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download_______





Features



Stainless steel casing
Excellent in corrosion resistance
Small tip dimensions
Fast time response for fluid immersion applications
Alternative casing, wire materials are available on request.





Dimensional drawing (mm)



300mm Micro Temperature Sensor , 100KOhm NTC Type Temperature Sensor 1



NO. Material  Specifications  Texture of material
1.

Sensing element



R25=100KΩ±1% B25/50=3950K±1%
2. Housing

3 step bullet housing with brass ring

∮6.8*3.4+∮4.0*23

SUS
3. Epoxy resin NZ-4 high temp glue black
4. Heat Shrinkable tube ∮1.0*10MM+2
5. Cable UL1332 26AWG2C TS Black PVC
6. Cable cover TPE Cu
7. Connector  2P White PVC





Electrical Performances



Serial number Item Symbol Test Conditions Min. Nor. Max. Unit
1. Resistance At 25℃ R25

Ta=0±0.05℃

PT≦0.1mw

99 100 101
2. B Value B25/50   3910.5 3950 3989.5 k
3. Thermal Dissipation Constant δ T1=85±0.2℃,Ta=25±1℃ / 3.0 / mw/℃
4.

Thermal Time Constant

(in water)

τ Ta=25±0.5℃ 25℃-50℃/63.2% / 2 / sec
5. Insulation test / 300VDC 1Sec 100 / /
6. Withstand Test / AC1050V 3mA 2Sec / / 5 Sec
7. Product Working Temp.Range / / -30 / +180





How to select the right thermistor / temperature sensor ?



1. Resistance Value
2. Resistance Temperature Characteristics
3. Resistance Tolerance and Temperature Tolerance
4. Operating Temperature
5. Mounting and Assembly
6. Configuration
7. Cost
8. Special Requirement



Resistance Value
NTC thermistors are typically specified or referenced with a resistance value at 25 °C. However, it is equally important to consider the minimum and maximum resistance values at the extremes of the operating temperature range.



Resistance Temperature Characteristics
Thermistors may be specified with either a temperature tolerance or a resistance tolerance at either a single temperature point or over a temperature range



Configuration
NTC thermistors come in several forms: bare discs, bare chips, glass coated beads, radial leads, thin film, surface mount, etc. The leaded styles are available with different housings, lead lengths, and encapsulation.



Mounting
Depending on application, mounting methods vary from screw mounts, pipe straps, tape or glued in. Please contact our sales representative for more information.



Special Requirement
Should special requirement such as space limitation, harsh environment, response time be considered, please be sure to let our sales representative know.
